500′ Nassau 6/3 SEOOW Portable Cable 600V Black

Your Lease Ownership Plan

est. $190 /week*

3935.685

Get it now and rent as you go. The item is yours after renting for 12 months or buyout early anytime. No down payment, no commitment and return/cancel anytime.

Rental Payment / 2 weeks: est. $378.43*

All lease payments apply to the ownership cost.

Ownership Options & Cost (before tax)

100-Day Price: $3,935.69*

Lease-to-Own: 26 bi-weekly payments over 12 months.

Early Buyout Price: After 100 days, buyout with a one-time payment of 50% of your remaining ownership balance.

Availability: It's in stock
DELIVER TO YOUR DOOR OR IN-STORE PICKUP*
LEASE TO OWN WITH NO CREDIT NEEDED*

Description

Product Description

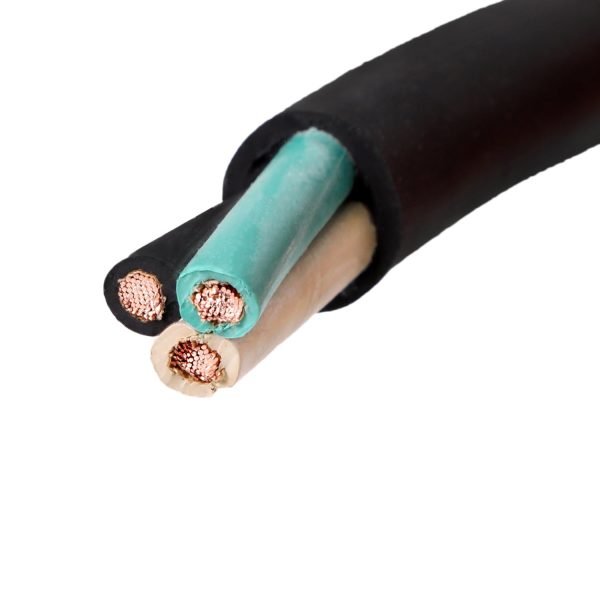

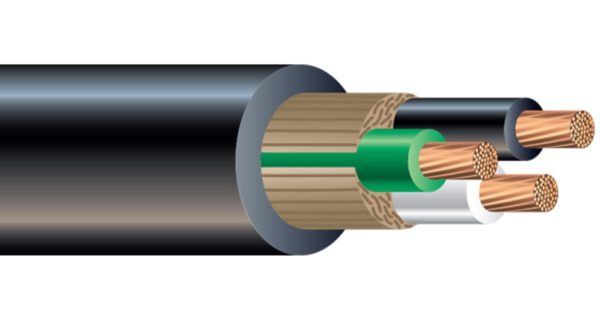

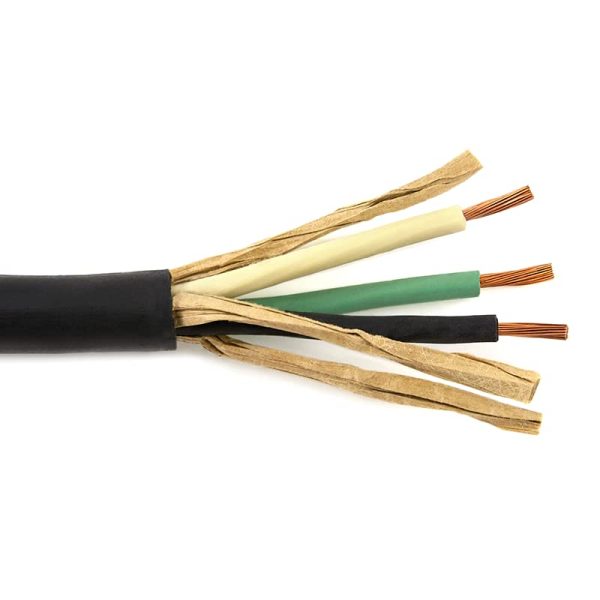

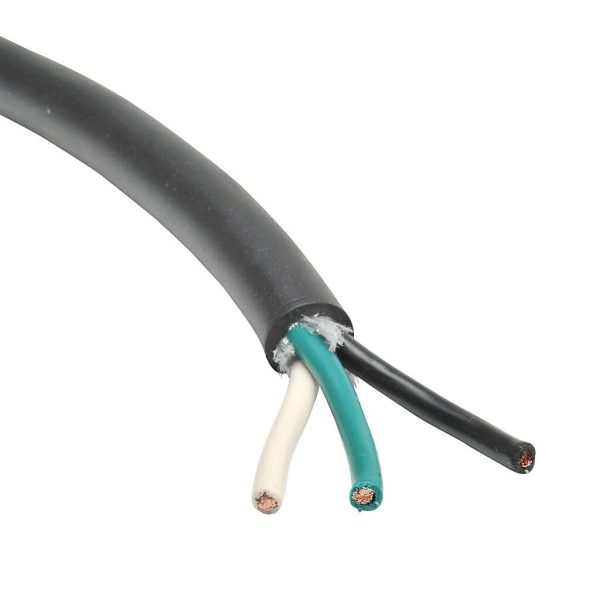

Nassau 6/3 SEOOW Portable Cable Black 600V

Applications

SEOOW / STOOW Portable Power Cable is a service electrical cable that is profound for its resistance to oil, water, and weather. SEOOW / STOOW is used in power facilities, motor control, remote control, industrial control, stage equipment, robotic systems, portable industrial machinery, and food processing facilities. SEOOW / STOOW Portable Power Cable is suitable both for indoor and outdoor use. It is also suitable for water submersion. Fillers of non-wicking polypropylene contribute to the lightweight of an electrical cable. The voltage rating is 600 V. The temperature rating is –50ºC to 105ºC. Images are for reference only See Product Specifications Please order carefully no returns are accepted.

Conductor

Conductors are made of fully annealed stranded bare copper with a Class K stranding per ASTM B 174. When there are two conductors, it is black and white in color, for three conductors, there is an extra green wire, an extra red is added for four conductors. For five conductors, an extra orange wire is added as the fifth conductor. Conductors are resistant to corrosion and moisture. They are also durable and reliable in the transmission of electric current.

Insulation

T*prene Oil resistant Thermoplastic Elastomer (TPE) with a color-coding for easy identification. The main feature of the insulation is its excellent resistance to oil.

Jacket

Flexible and tough seoprene jacket with excellent resistance to chemical and physical damage, zone, sunlight, moisture, chemicals, acids, flames, alkalis, and weather.

Product Specifications

AWG Size: 6
Number of Conductors: 3
Stranding: 133/27
Insulation Thickness: 0.060 inches
Outside Diameter: 1.975 inches
Weight: 579 lbs
Volts: 600 V

Gauge 2 6 8 10 10 4
No. Conductors 4 4 5 4 5 3
Stranding 133/0.0223 101/26 65/26 104/30 104/30 119X25
Insulation Wall, Nom OD Inches 0.055 0.050 0.050 0.045 0.045 0.050
O.D. Inches 1.117 0.865 0.840 0.710 0.770 0.925
New Weight lb/1000FT 1248 615 570 360 409 683
Amps 80 45 28 25 20 70
Volts 600 600 600 600 600 600

  • Size AWG : 6
  • Number of Strands : 3
  • Insulation Thickness : 0.060 inches
  • Stranding : 133/27
  • Weight (lbs/1000ft) : 579
