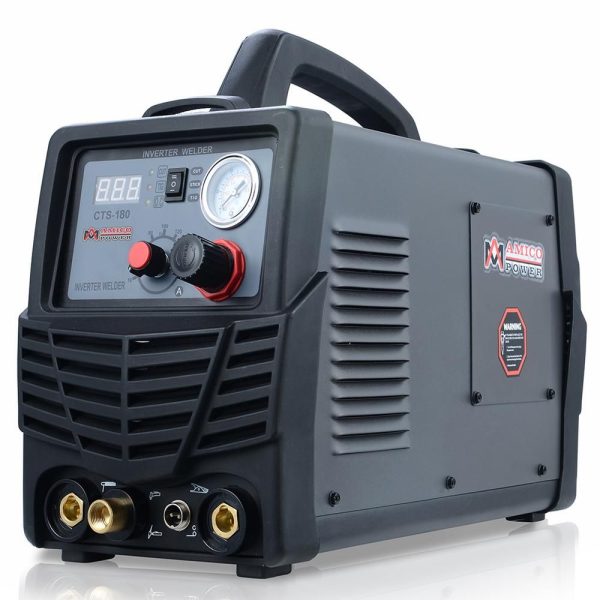

AMICO POWER – Plasma Cutter/TIG/Stick Arc 3-in-1 Combo DC Welder 40A-Plasma Cutter 180A-TIG-Torch 160A-Stick Arc Welding Machine
Shop Now Pay Later, It's Easy - Simply Lease to Own.
est. $23.00 /week*
- Details
- Additional Information
- Specifications
Description
Specifications: Type: Plasma Cutter, TIG-Torch, Stick/Arc 3-in-1 Combo Welding, Supply Power: 110/230-Volt/60Hz/1-Phase, Welding current Range: Plasma Cutter: 230-Volt/5-40A & 110-Volt/5-40A, TIG Torch: 230-Volt/15-180A & 110-Volt/15-140A, STICK ARC: 230-Volt/15-160A & 110-Volt/15-130A, Welding output, 104F(40C): Plasma Cutter: 45A/98-Volt, TIG Torch: 180A/17.2-Volt, STICK ARC: 160A/26.4-Volt, Rated Input Current: Plasma Cutter: 20.8A/230-Volt & 33.1A/110-Volt, TIG Torch: 16.8A/230-Volt & 23.7A/110-Volt, STICK ARC: 22.9A/230-Volt & 35.6A/110-Volt, Duty Cycle: Plasma Cutter: 60% at 40A & 100% at 29.6A, TIG Torch: 60% at 180A & 100% at 118.5A, STICK ARC: 60% at 160A & 100% at 118.5A, Nominal DC Open Circuit Voltage: 73V, Efficiency: 85%, Power factor: 0.93, Output Terminal Type; Direct Wire, Cooling Method: Fan Air Cooled, Air Pressure: 25 psi 30 psi. Net Weight: 38 lbs., Product Size: 19.5 x 9.0 x 14 in., Package Weight: 48 lbs., Shipping Size: 22.6 x 12.2 x 16.53 in., Package Includes: CTS-180 Plasma Cutter/TIG-Torch/Stick/Arc 3-in-1 Combo Welding, 13 Feet (PT-31/LG-40) Plasma Cutter Gun with Assembly, 13 Feet (WP-17) TIG Torch Gun with Assembly, 11 Feet 600A Electrode Holder with Cable, 11 Feet 600A Work Clamp with Cable, 8 Feet Argon Gas Hose, 110-Volt & 230-Volt Transfer Plug, 2 Pieces Tungsten Needles 1/16 in., 2 Pieces Tungsten Needles 5/64 in., 2 pieces Electrode 1/8 in., 2 pieces Electrode 5/32 in., Owners Manual
- CTS-180 is the perfect choice for projects and repairs around the home and auto body shop
- Combo 3-in-1 multi-function plasma cutter/TIG torch/stick arc professional welding machine
- Advanced IGBT technology, synergic controlled, very easy and simple operation
- Featured wave-form control system: perfect wave form of volts and amps during, short circuits and Arc burning cycles
- Automatic compensation for voltage fluctuation, over-voltage protection, under voltage protection, over current protection, over load protection
- Automatic temperature control, fan dormancy, steeples amperage control, all generators friendly
- Optimized to deliver a flawless weld, making spatter and post-weld cleanup almost non-existent
| Manufacturer | AMICO POWER |
|---|---|
| Specification |
DimensionsProduct Depth (in.)
19.5 in
Product Height (in.)
14 in
Product Width (in.)
9 in
DetailsDuty Cycle (%)
60
Engine Power
Electric (AC)
Included
Hose,Kit,Tips,Torch
Input Power (Volts)
110230
Material Application Thickness (in.)
Maximum amperage output (amps)
180
Minimum amperage output (amps)
5
Output Current Mode
DC
Rated Output (Volts)
73
Returnable
180-Day
Welder Type
Arc,Multi-Process,Plasma Cutter,Stick,TIG
Warranty / Certifications |
