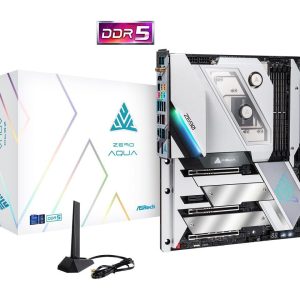

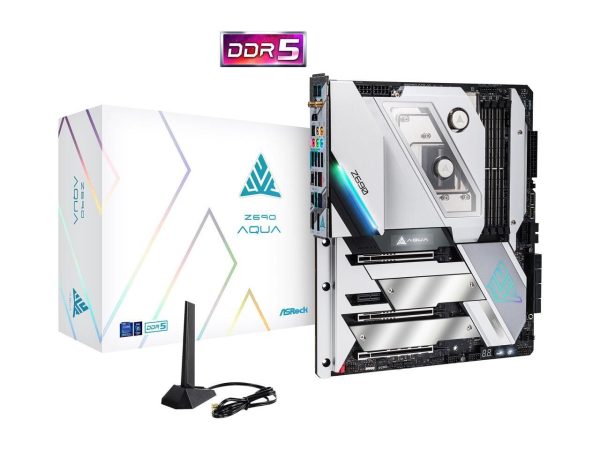

ASRock Z690 AQUA LGA 1700 DDR5 Intel Z690 Intel Motherboard
- Supports 12th Gen Intel Core Processors (LGA1700)
- 20 Phase SPS Dr.MOS Power Design
- Supports DDR5 6400MHz (OC)
- 2 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, 2 Thunderbolt Type-C
- Realtek ALC1220 7.1 CH HD Audio Codec, ESS SABRE 9218 DAC, WIMA Audio Caps, Nahimic Audio
- 8 SATA3
- 1 Hyper M.2 (PCIe Gen4 x4)
- 2 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 2 Thunderbolt 4/USB4 Type-C
- 2 USB 3.2 Gen2x2 Front Type-C
- 2 Rear USB 3.2 Gen2 Type A
- 8 USB 3.2 Gen1 (4 Rear, 4 Front)
- AQUANTIA / Marvell 10G LAN, Killer E3100 2.5G LAN
- Killer AX1675 802.11ax (WiFi 6E) + Bluetooth
- Status OLED + Polychrome SYNC
- Dedicated LGA1700 mounting bracket is required
Shop Now Pay Later, It's Easy - Simply Lease to Own.
est. $66.00 /week*
Pricing Information
Get it now rent as you go. The item is yours after renting for 12 months or buyout early anytime. No down payment, no commitment, return/cancel anytime.
Rental payment / 2 wks est. $132.00* All lease payments apply to the ownership cost
Ownership Options & Cost (before tax)
Lease-to-Own: 26 bi-weekly payments over 12 months.
Early buyout price: After 100 days, buyout with a one-time payment of 50% of your remaining ownership balance.
- Details
- Additional Information
- Specifications
Description
Brand | ASRock |
---|---|
Model | Z690 AQUA |
CPU Socket Type | LGA 1700
* Dedicated LGA1700 mounting bracket is required. |
---|---|
CPU Type | Supports 12th Gen Intel Core Processors Supports Intel Pentium / Celeron Processors |
Supported CPU Technologies | Turbo Boost Technology 3.0 |
Chipset | Intel Z690 |
---|
Onboard Video Chipset | Supported only by CPU with integrated graphic |
---|
Number of Memory Slots | 4Ã288pin (DDR5) |
---|---|
Memory Standard | DDR5 6400+(OC)*
* Supports DDR5 4400 (1DPC) / 3600 (2DPC) natively. |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
PCI Express 5.0 x16 | 2 x PCI Express 5.0 x16
* Supports NVMe SSD as boot disks. |
---|---|
PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16
* Supports NVMe SSD as boot disks. |
PCI Express x1 | 1 x PCIe Gen3 x1 |
Other Slots | 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
SATA 6Gb/s | 8 x SATA 6Gb/s
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. |
---|---|
M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) mode* * Supports Intel Optane Technology (M2_2 and M2_3 only). |
Intel Optane Ready | Yes |
SATA RAID | 0/1/5/10 |
Audio Chipset | Realtek ALC1220 |
---|---|
Audio Channels | 7.1 Channels |
LAN Chipset | Marvell (Aquantia) AQC113CS |
---|---|
Second LAN Chipset | Killer E3100G |
Max LAN Speed | 10Gbps + 10/100/1000/2500Mbps |
Wireless LAN | 802.11ax Wi-Fi 6E Module IEEE 802.11a/b/g/n/ax |
Bluetooth | Yes |
Back I/O Ports | 2 x Antenna Ports 1 x HDMI Port 2 x DisplayPort 1.4 Input 1 x Optical SPDIF Out Port 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) 2 x USB4 Thunderbolt 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)* 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)** 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) 1 x Clear CMOS Button 1 x BIOS Flashback Button HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED) * Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging. |
---|
Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 2 x Front Panel Type C USB 3.2 Gen2x2 Headers (20 Gb/s) (Support ESD Protection) |
---|---|
Other Connectors | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED 1 x Retry Button 1 x Safe Boot Button * Supports in total up to 12V/3A, 36W LED Strip. |
Form Factor | Extended ATX |
---|---|
LED Lighting | RGB |
Dimensions (W x L) | 12.0″ x 10.5″ |
Power Pin | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
Windows 11 | Supported |
---|
Features | Unique Feature: ASRock USB4 – ASRock USB4 Thunderbolt 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) ASRock USB 3.2 Gen2 – ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s) – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium Power Choke – 105A SPS (Smart Power Stage) – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke) – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – I/O Armor – Matte Black PCB – High Density Glass Fabric PCB – 12 Layer PCB – 2oz Copper PCB AQUA Cooling Armor Server-Grade Low-Loss PCB Marvell (Aquantia) 10G LAN AQUANTIA 10G LAN Killer 2.5G LAN 802.11ax Wi-Fi 6E Killer DoubleShot Pro ASRock Auto Driver Installer ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Ultra USB Power ASRock Status OLED ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: Software and UEFI: Support CD OS: |
---|
Manufacturer | Other Brands |
---|
