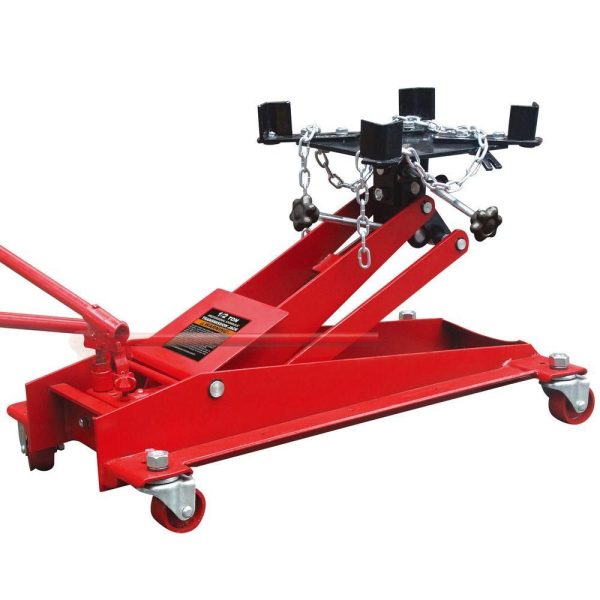

Big Red 1,000 lb Roll-Under Transmission Jack
Your Lease Ownership Plan
est. $15.00 /week*
DELIVER TO YOUR DOOR OR IN-STORE PICKUP*
LEASE TO OWN WITH NO CREDIT NEEDED*
- Details
- Additional Information
- Q & A
- Specifications
Description
Product Overview
The Big Red 1,000 lb. Roll-Under Transmission Jack offers smooth hydraulic lifting and lowering. Its special features include a 360-degree rotating handle and an adjustable head and saddle. The saddle allows full side to side and front and back adjustment. For every day garage service to heavy-duty industrial use. Adjustable head tilts forward, back, and side to side.
- Lifting range 8-11/16 in. to 22-11/16 in.
- Universal mounting head with a wide forward and aft tilt for positioning
- Durable steel casters swivel 360 degrees for easy maneuverability
- Reinforced base with a wide stance for added stability
- Specially designed hydrualic system for a smooth, steady lift
- 360 degree rotating handle for easy access
- Ram travel: 13-3/4 in
- Powder coated for rust resistance
- 100 percent factory tested for reliability and safety
- California residents see Prop 65 WARNINGS
| Manufacturer | Other Brands | |
|---|---|---|
| Specification | ||
Dimensions |
||
| Base Length (in.) | ||
| 30.12 | ||
| Base Width (in.) | ||
| 15.94 | ||
| Collapsed height (in.) | ||
| 8.5 | ||
| Handle Length (in.) | ||
| 24.41 | ||
| Product Depth (in.) | ||
| 29.5 | ||
| Product Height (in.) | ||
| 9.06 | ||
| Product Width (in.) | ||
| 16.5 | ||
Details |
||
| Features | ||
| No Additional Features | ||
| General Part Type | ||
| Transmission Jack | ||
| Maximum Lift Height (in.) | ||
| 22.2 | ||
| Mechanism type | ||
| Hydraulic | ||
| Minimum Lift Height (in.) | ||
| 8.5 | ||
| Product Weight (lb.) | ||
| 76.07lb | ||
| Returnable | ||
| 180-Day | ||
| Tilt Capacity Back (degrees) | ||
| 71 | ||
| Tilt Capacity Front (degrees) | ||
| 13 | ||
| Tilt Capacity Side (degrees) | ||
| 30 | ||
| Weight Capacity (lb.) | ||
| 1000 | ||
Warranty / Certifications |
||
| Manufacturer Warranty | ||
| 1 Year |
