Camecho Vehicle Backup Camera 4 Split Monitor Front View Rear View Camera Auto 18 IR Night Vision Waterproof Aviation 4 Pins Connector LCD Monitor for Trucks RV Trailer Bus
Your Lease Ownership Plan
est. $6 /week*
DELIVER TO YOUR DOOR OR IN-STORE PICKUP*
LEASE TO OWN WITH NO CREDIT NEEDED*
- Details
- Reviews (0)
- Q & A
Description
Product description
7 Inch Split Screen Monitor
- Support 4 channel video input display at the same time
- Connector: 4 pin aviation connector
- Wide range of 12-24V applications

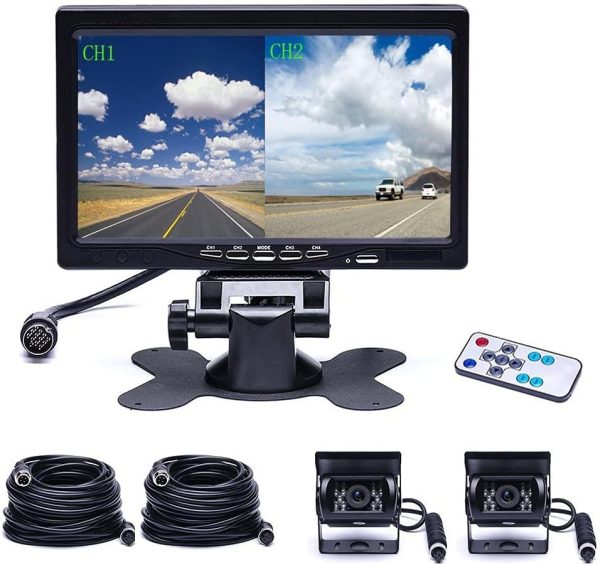

Package Included:
- 1 x 7 inch Car Monitor
- 2 x Aviation 4 Pins type Backup Camera (Rear camera with guide line. Front camera without guide line won’t affect viewing)
- 2 x 33ft length cable
- 1 x Dashboard Mounting Bracket
- 1 x Remote Control

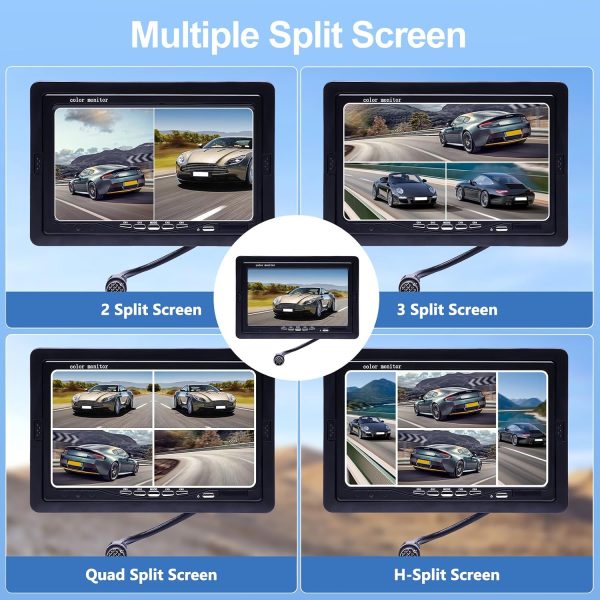

6 Display Modes Available
- The screen can be configured to show channels 1/2/3/4 at the same time
- The image displayed on CH1-CH4 is from connector V1-V4 accordingly
- Auto Switch: After correct wiring, the monitor will automatically switch to single channel rear view camera image when reverse gear is pulled
- More settings on the “Menu” remote control: select Brightness settings, rotate picture, contrast, language, etc.
Backup system: 2 cameras + 7-inch 4-division monitor
| Monitor | 7 Inch Split Screen Quad Monitor x1 |
| Operating mode | use of keys and remote control(The remote control is inclued) |
| Video output | Support 4 video signal input, one button one channel select |
| Screen ratio | 16: 9/4: 3 Select |
| TV system | PAL (CCIR), NTSC (EIA) PAL: 625 lines, NTSC: 525 lines |
| Power supply | DC 12V-24V, Ultra-low power consumption |
| Language | English, German, French, Spanish, Portuguese, Italian, Chinese etc. |
| Camera | Aviation 4 Pins type Backup Camera X 2( Front camera+Rear view camera) |
| Waterproof Rating | IP 68 Rating Waterproof Backup Camera |
| Signal format | PAL / NTCS |
| Night Vision | 18 IR auto switch function when light is low, camera will light up IR light |
| Vertical sync frequency | 50 / 60Hz |
| Minimum illumination | 0.01luk / f1.2 |
| Guide line | Rear camera with guide line. Front camera without guide line won’t affect viewing |
| Cable | With Dual 33FT Cables, Highly quality can be used for long time. |
| Power cord | 4-pin type. Water resistant and anti-interference connector, more tightly connected |
2 extensions with 4-pin aviation connector
Provide video signal and power in one cable, no need to wire power cable for camera. You can mount the camera anywhere you want.
- Strong anti-interference ability
- Stable signal transmission
- Screw connection, far from falling
- Waterproof case, protect the connector from rust
- 2 cables in total: 2 x 10 meters

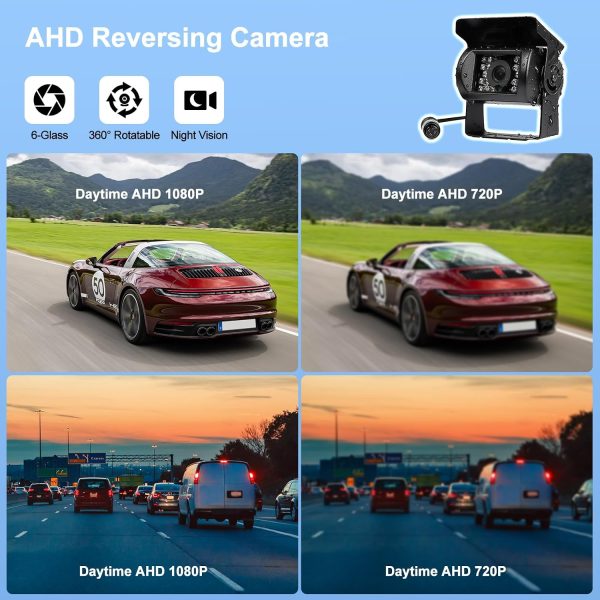

Super Color 18 IR Night Vision
- With 7 Inch TFT LCD widescreen wireless monitor– high resolution image, full color displayrestores and captures real and clear color images even at dark.
- The rear view range is up to 15m road conditions behind the car, reduces the invisible blind spot to a greater extent.

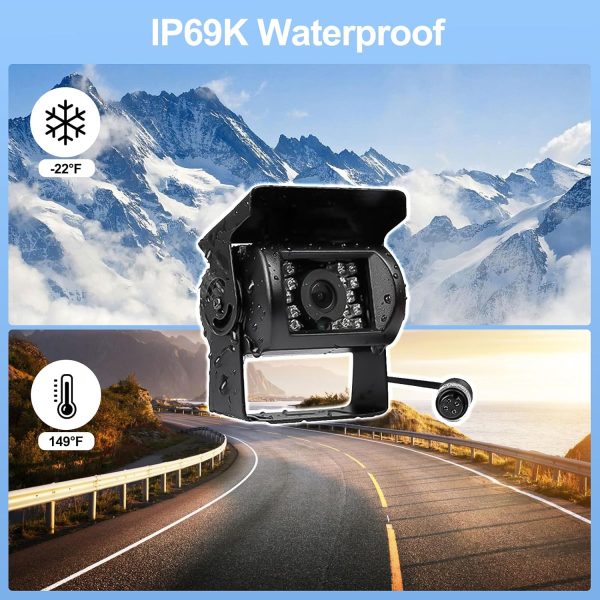

IP68 waterproof Reliable Construction
- Metal frame, strong construction
- IP68 waterproof
- Vision Degree:120°
Front View Camera without Guideline
- Please test 2 cameras before mount cameras onto truck, the front view camera has not backup line, mount it onto front or bothside of truck

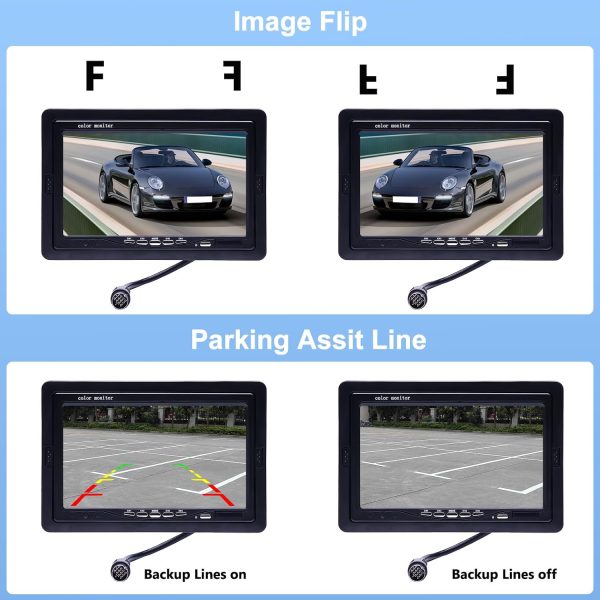

Rear View Camera with Guideline
- The rear view camera built-in backup guide line, it will help you reversing truck with the mirror view.
Use Remote Control to Switch V1-V4

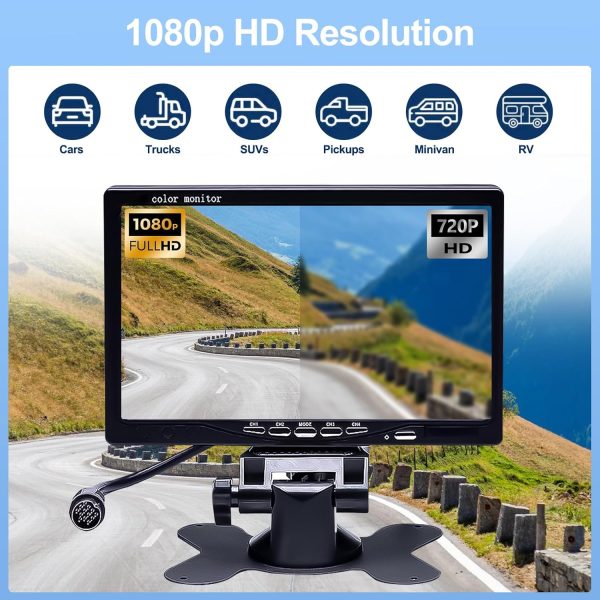

- Monitor Size: 7 inch
- Screen ratio : 16:9/4:3 select
- 6 modes of Image displaying, you could choose every channel full screen, or PIP (4 in 1,3 in 1, 2 in 1)
Installation：
1. Monitor :
- The monitor has six color cables(Red / black / blue / white / green / brown ). The red wire connected to positive 12V/24V, black wire to ground.
- If you use one camera as a backup camera, Connect the color cable to 12V/24V positive power accordingly [ Green-CH3, White- CH2 , Blue-CH1, Brown -CH4 ].
- Another camera without guide line could be used as a full time monitor.
2. The package include 2 cameras,
- You could add another 2 cameras and choose cable length as your needs.
- The connector is pins type, please be careful connect it correct and tightly.
- Every connector has interface mark.
3. Use extend cable wiring camera to monitor V1/V2 yellow input. (there has a mark for every channel )
4. Attention: you can set things up from the menu which is accessible only with the remote control.(The battery of CR2025 is not included)
- 12V – 24V Dual Car Backup System: Upgrade High quality Materials dual backup cameras to view both the hitch and the road behind vehicle. Use for 33 ft length RV/ trailer/ Camper / Lorry / Pickup / Bus etc
- 7 inch Split Monitor : 4 Channel input; one button one channel select, Sharp color and high contrast, Image can be rotated horizontally and vertically for mirror or normal viewing. Viewing full time and switch channel by button
- IP 68 Rating Waterproof Backup Camera: 120 Degree Wide View Angle,Strong anti- interference, 4 pins Cord- more closely connected. Waterproof lens and outdoor for long time use
- Auto Infra-Red Night Vision: 18 IR lights provide a perfect view when the light is low Or even on darkest night. Viewing range up to 30ft
- Attention: you can set things up from the menu which is accessible only with the remote control. Package: 1* 7 inch Split Monitor; 2* Backup Camera(Aviation 4 Pins); 2* 33ft cable, 1* Remote Control(Please notes that our package included remote control but without batteries). Customer Support : 12 months replacement, life time technical support. Respond within 24Hs
