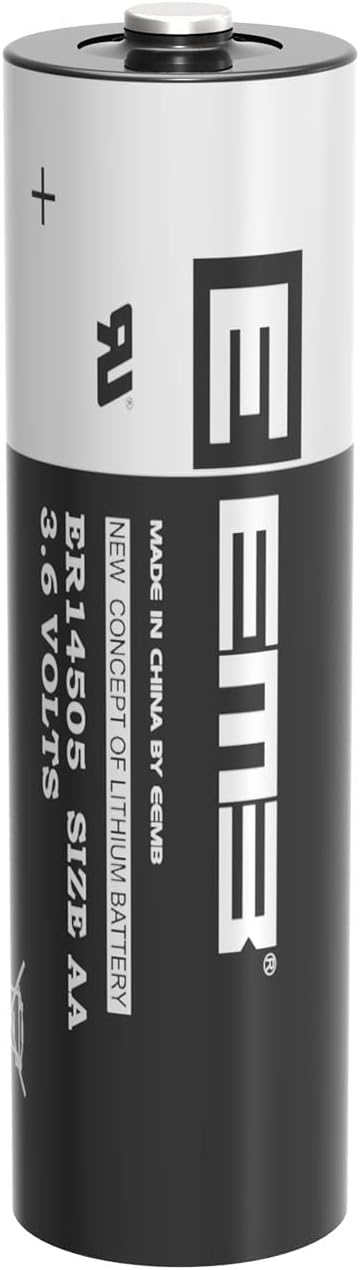

EEMB ER14505 Nonrechargeable 3.6V Lithium Battery Li-SOCL₂ AA Size 2700mAh High Capacity UL Certified Single-Use 3.6V Lithium Thionyl Chloride Battery DO NOT Charge
Your Lease Ownership Plan
est. $1 /week*
DELIVER TO YOUR DOOR OR IN-STORE PICKUP*
LEASE TO OWN WITH NO CREDIT NEEDED*
- Details
- Reviews (0)
- Q & A
Description
Product description
APPLICATION
Medical instruments, cash registers, alarm and security systems, wireless devices, mobile asset tracking equipment, electronic meters (water, gas, electricity), automotive telematics, vehicle tracking devices, ETCs (Electronic Toll CollectionSystems).

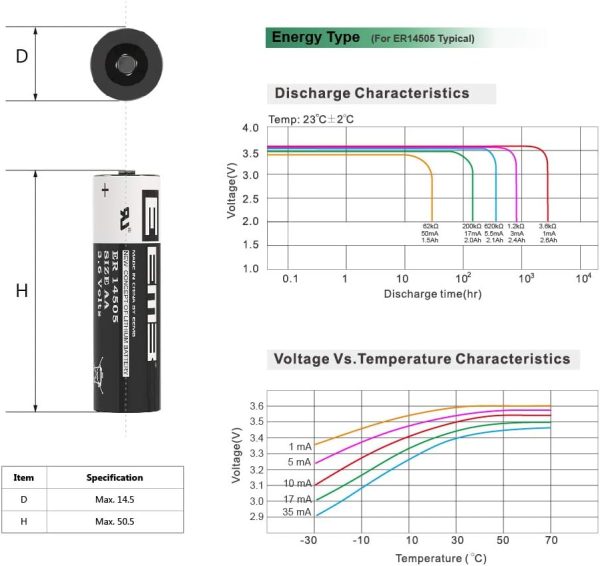

ER14505
Non-Rechargeable
Norminal Capacity: 2700mAh
Norminal Voltage: 3.6 V
Max Continuous Discharge Current: 50mA
Max Pulse Discharge Current: 100mA
Weight: 19g
Diameter: 14.5mm
Height: 50±0.5mm
Operating Temperature: -55 ° C ~ +85 ° C
Shelf Life: 10 years
Self-discharger Rate: ≤1%
- Self-discharge rate of less than 1% per year
- Wide range of temperatures: -55°C to +85°C
- Superior shelf life
What if your battery doesn’t work when connected to the device?
1. Test the OCV(Open Circuit Voltage). You can use the multi-meter to test the voltage. Standard voltage should be no less than 3.6V. If your battery is lower than 3.6V, please tell us.
2. Test loading voltage. The loading voltage should be around 3.2V. If your loading voltage is higher than 3.2V, the battery is in good condition. Due to the passivation characteristic of lithium thionyl chloride, your loading voltage may not reach 3.2V immediately. You can connect the battery with a resistor and activate it with a multimeter. When the loading voltage of the battery reaches 3.2V, then the activation is successful and the battery can be used.
3. If the battery fails to activate or is still unusable after activation, please tell us.
Warning:
1. Thoroughly read the product datasheet before use, inaccurate handling may cause leakage, heat, smoke, explosion, or fire, causing device trouble or injury.
2. DO NOT recharge, short-circuit, puncture, disassemble, deform, heat, incinerate, or place the battery near a direct flame. This battery contains flammable materials such as lithium and organic solvent and performing any of the above actions could cause it to ignite explode or become damaged.
3. DO NOT over-discharge, do not force discharge. In case the battery is over-discharged battery has potential of explosion. In case battery is over discharged, when connected with exterior power source or connected with other batteries in series, explosion may occur.
4. Keep this battery out of the reach of children. If it is swallowed, contact a physician immediately.
5. When storing a battery or throwing it away, be sure to cover it with tape. If the battery is contacted with other metal objects, it could cause fire or become damaged.
6. Insert the battery with the “+” and “-” ends correctly oriented.
7. Do not mix use old, new or different brand or type of battery.
8. Do not solder the battery directly.
9. Avoid storing the battery in direct sunlight, or in excessively hot and humid place.
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
||
| Customer Reviews |
4.0 out of 5 stars 981
|
4.2 out of 5 stars 1,122
|
4.2 out of 5 stars 42
|
4.4 out of 5 stars 286
|
4.2 out of 5 stars 300
|
4.4 out of 5 stars 65
|
|---|---|---|---|---|---|---|
| Price | $19.69$19.69 | $7.08$7.08 | $18.99$18.99 | $28.84$28.84 | $42.74$42.74 | $15.99$15.99 |
| Voltage | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V |
| Capacity | 1200mAh | 2700mAh | 4100mAh | 9000mAh | 19000mAh | 13000mAh |
| Conts(mAh) | 20 | 50 | 80 | 100 | 150 | 2000 |
| Pulse(mAh) | 50 | 100 | 150 | 200 | 300 | 3000 |
| Temperature | -55℃ to +85℃ | -55℃ to +85℃ | -55℃ to +85℃ | -55℃ to +85℃ | -55℃ to +85℃ | -55℃ to +85℃ |
| Dimension | 14x25mm | 14×50.5mm | 18×50.5mm | 26x50mm | 33X61.5mm | 34.5X63mm |
| Weight | 11g | 19g | 29g | 53g | 105g | 115g |
| Size | 1/2 AA | AA | – no data | C | D | D |
| Rechargeable | X | X | X | X | X | X |
- BASIC INFO—This is a single use battery with AX Tabs. DO NOT Charge battery. 3.6V non-rechargeable AA lithium thionyl chloride battery; 2700 mAh; 14.5*50mm(H±0.5)/0.57*1.97 inch(H±0.02), wide range of temperatures -55°C to +85°C; most suitable for low power consumption devices.
- CERTIFICATIONS—RoHS and UN 38.3 compliant; UL and IEC certified.
- MANUFACTURER DIRECT—Lithium thionyl chloride battery has a passivation characteristic. Therefore, we highly recommend customers use the battery within approximately 2-3 months, depending on the storage condition to receive optimal performance. Although our battery has a 10-year shelf life (under special storage conditions), we advise customers not to store batteries for a long time due to the passivation characteristic. It is highly recommended that you purchase as many as you need.
- CAUTION! If you plugged in the battery into your device and it appears to be “dead” or “half-charged,” it is usually due to lithium battery’s voltage delay or passivation. The battery can generally restore itself after it is started. If it doesn’t, please contact us immediately for free replacement. If you are not sure whether this is the right type of battery for you, please contact us with your device information so we can find you the correct battery.
- GLOBAL TECHNICAL SUPPORT—We take pride in providing the highest levels of customer satisfaction and we have over 20 years experience in lithium battery business. If you have any questions or concerns regarding our products, please send us a message and we will get back to you within 24 hours.
