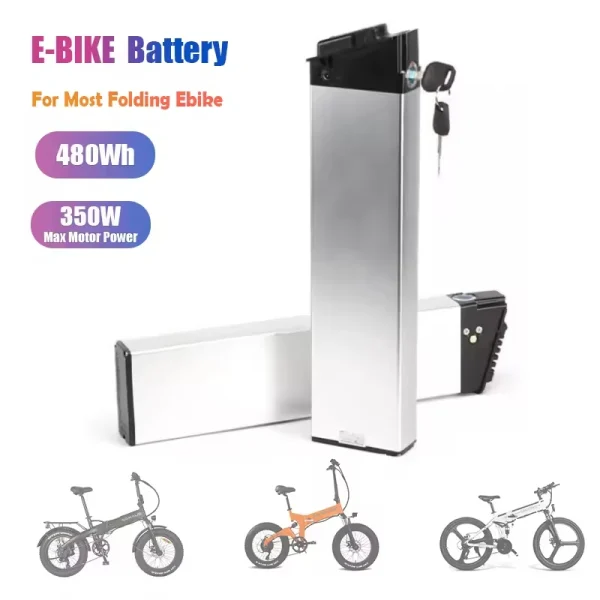

[EU/USA Direct] HANIWINNER HA177-06 48V 10Ah 480Wh Universal Folding Electric Bike Battery – Powered by High-Quality 18650 Lithium-ion Cells | 20A BMS | Waterproof | XT60 Connector | Safety Lock | Fits 48V 250W-650W Motor SAMEBIKE BEZIOR PLENTY E-Bike

Your Lease Ownership Plan

est. $12 /week*

246.987

Get it now and rent as you go. The item is yours after renting for 12 months or buyout early anytime. No down payment, no commitment and return/cancel anytime.

Rental Payment / 2 weeks: est. $23.75*

All lease payments apply to the ownership cost.

Ownership Options & Cost (before tax)

100-Day Price: $246.99*

Lease-to-Own: 26 bi-weekly payments over 12 months.

Early Buyout Price: After 100 days, buyout with a one-time payment of 50% of your remaining ownership balance.

DELIVER TO YOUR DOOR OR IN-STORE PICKUP*
LEASE TO OWN WITH NO CREDIT NEEDED*

Description

Recommend:

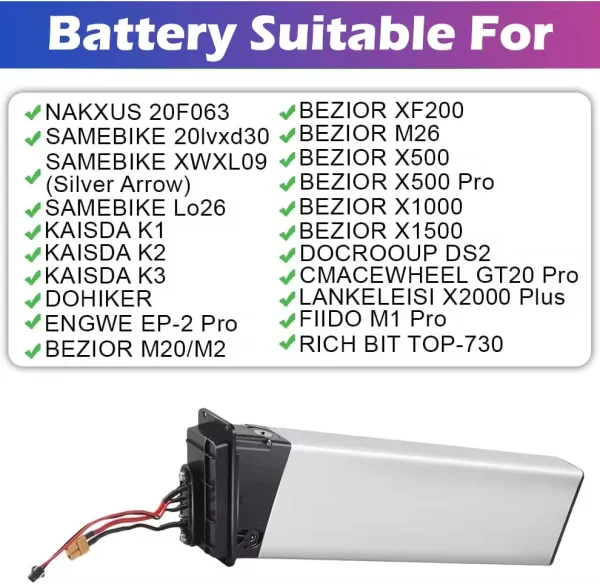

This battery is compatible with the electric bicycle model For NAKXUS 20F063/SAMEBIKE 20lvxd30 Lo26/KAISDA K1 K2 K3/PLENTY/DOHIKER/ENGWE EP-2 Pro/BEZIOR M20 M2 XF200/RICH BIT TOP-730/BEZIOR X500 Pro X1000/DOCROOUP DS2/ LANKELEISI X2000 Plus/BEZIOR X500 X1500/FIIDO M1 Pro/LAOTIE PX5 Engwe EP/2 Samebike PLENTY.


Specifications:

Model

HA177-06

Rated Voltage

48V

Rated Capacity

10Ah

Battery Power

480Wh

Max Charge Voltage

54.6V

Discharge Cut-off Voltage

39V

Max. Charge Current

5A

Standard Discharge Current

5A

Max. Discharge Current(BMS)

20A

Over current protection

70±20A

Security lock

YES

Net weight

3.2kg

Gross weight

3.6kg

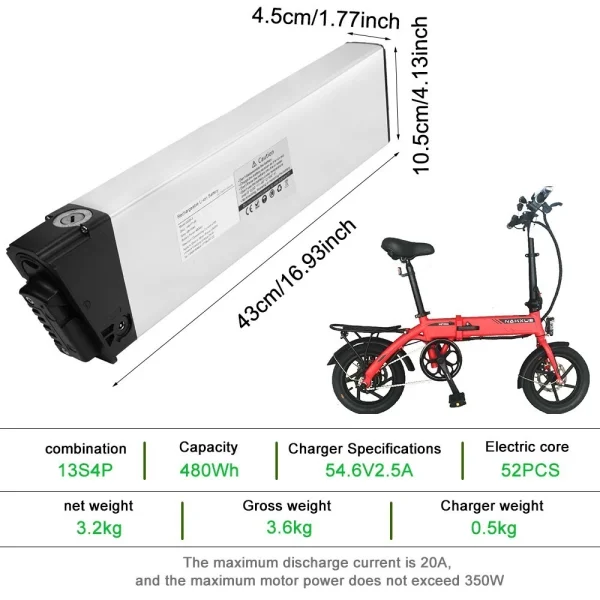

Battery size

430*45*105mm

Packing size

470*200*175mm

Operating Temperature

Charge

0℃~45℃

Discharge

-10℃~60℃

Storage

Within a month

0℃~45℃

Within a month to three months

5℃~40℃

Within three months to one year

10℃~35℃

Features:

User-friendly Design: The lightweight design makes the battery easy to install and remove. The black hard plastic shell protects the battery effectively and the LED battery level indicator can inform you of charging in time. The USB port can charge your phone and other devices outdoors. Equipped with a battery holder, just need to use the key to open the safe lock.

Safe to Use: Built to the highest standards that have been tested. When the motor is overloaded, the system automatically switches off to protect the technical components against damage. The battery is fully sealed and designed to be used one day long, even on muddy roads.

BMS Protection Board: The high-quality battery is equipped with a 30A BMS protective plate, which prevents charge, over-discharge, and current and short circuits and ensures a long life expectancy.


Stable and Tough:
The input and output are more stable and its large capacity makes the service life of the battery longer.

Ergonomic Design and Widely Applicable: The electric bike battery pack has a mounting bracket that will mount to most water bottle screw holes in the frame. Compatible with 48V electric bikes, bicycles, mountain bikes, and more.

Package Contents:

1* Battery with keys

1* Battery install plate and wires


Warnings and Cautions in Using the Battery:

To prevent the possibility of the battery from leaking, heating, or explosion please observe the following precautions:

– Do not immerse the battery in water, and keep the battery in a cool dry surrounding if it stands by.

– Do not use or leave the battery near a heat source such as a fire or heater.

– Use the battery charger specifically for that purpose when recharging.

– Do not reverse the position and negative terminals.

– Do not connect the battery to an electrical outlet.

– Do not discard the battery in a fire or a heater.

– Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

– Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc

– Do not directly solder the battery and pierce the battery with a nail or other sharp objects.

– Do not use or leave the battery at high temperatures (for example, in strong direct sunlight or in a vehicle in extremely hot weather). Otherwise, it can overheat or fire, or its performance will degenerate and its service life will be decreased.

– Do not use the battery in a location where static electricity and the magnetic field are great, otherwise, the safety devices may be damaged, causing trouble of safety.

– If the battery has leaked, and the electrolyte gets into the eyes, do not rub the eyes, instead, rinse the eyes with clean water, and immediately look for medical attention. Otherwise, it may injure the eyes.

– If the battery gives off an odor, generates heat, becomes discolored or deformed, or in any way appears abnormal during use, recharging, or storage, immediately remove it from the device or battery charger and stop using it

– In case the battery terminals are dirty, clean the terminals with a dry cloth before use. Otherwise, performance may occur due to the poor connection with the instrument.

– Be aware that discarded batteries may cause fire, tape the battery terminals to insulate them.

– Battery charge as soon as possible after the battery is exhausted. The battery is not used for a long time, charged once every three months.
