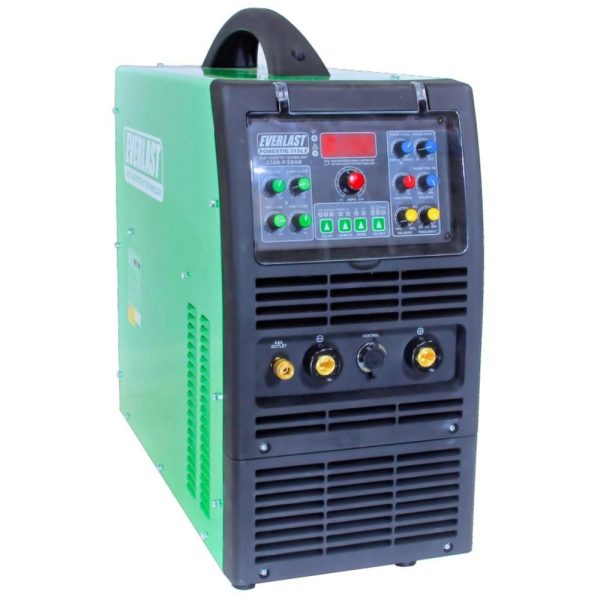

Everlast 315 Amp PowerTIG 315LX IGBT Digital Inverter AC/DC Stick/TIG Welder w/ High Frequency and Lift TIG Start, 240V
Shop Now Pay Later, It's Easy - Simply Lease to Own.
est. $97.00 /week*
- Details
- Additional Information
- Specifications
Description
Designed for heavy commercial applications, the PowerTIG 315LX is a capable, AC/DC TIG and Stick welder with power to spare for most jobs. The IGBT inverter creates a stable smooth arc, and provides a true industrial duty cycle of 60% at 315-amp. This unit operates on 208/240-Volt 3 phase power, and is designed for production welding. The welder features a 10-amp DC start and a 20-amp AC start. The PowerTIG 315LX also offers the most power of any TIG welder in the Everlast Analog TIG. It also features a leading 20-500Hz AC frequency and a pulse frequency up to 750Hz, to keep pace with the most demanding welding requirements. This unit is also available in 480-Volt 3 phase under our special order program. (Allow 6-8 weeks for production and delivery)
- Infineon IGBT power modules increase reliability and arc performance
- 10-amp DC and 20-amp AC minimum amp starts
- 2T/4T up and downslope operation for welding with torch switch
- Pre flow and post flow control of maximum shielding gas protection before and after the weld
- HF or lift TIG start with improved HF start circuit
- Expanded AC frequency range up to 500 Hz
- Pulse up to 750 Hz for maximum arc and heat control
- Heavy duty design and construction that retains portability in industrial situations
| Manufacturer | Everlast |
|---|---|
| Specification |
DimensionsProduct Depth (in.)
26
Product Height (in.)
22
Product Width (in.)
12
DetailsDuty Cycle (%)
60
Engine Power
Electric (AC)
Included
Kit
Input Power (Volts)
220
Material Application Thickness (in.)
Arc,Multi-Process,Stick,TIG
Maximum amperage output (amps)
315
Minimum amperage output (amps)
10
Output Current Mode
AC/DC
Rated Output (Volts)
30
Returnable
180-Day
Tools Product Type
Power Tool
Welder Type
Arc,Multi-Process,Stick,TIG
