FILL RITE 1/4 HP 120-V 8 GPM DEF Transfer Pump w/ Drum/Barrel Accessories
Your Lease Ownership Plan
est. $38.00 /week*
DELIVER TO YOUR DOOR OR IN-STORE PICKUP*
LEASE TO OWN WITH NO CREDIT NEEDED*
- Details
- Additional Information
- Q & A
- Specifications
Description
Product Overview

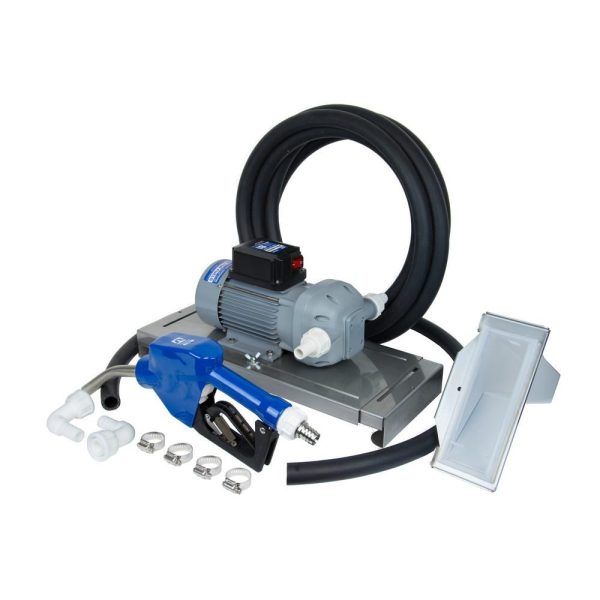

The new DF Series from FILL-RITE provide quick, easy and safe dispensing. Each pump is a Multi-Diaphragm pump designed for the transfer of diesel exhaust fluid (DEF), ad blue, urea or water. with 8 GPM flow rates, your choice of AC or DC power and all-in-one systems ready to go right out of the box, pumping has never been easier. Whether you pump from a tote or drum, there is a DF series system for you. Models are available in 12-Volt or 120-Volt options and can be mounted on totes or drums. The DF120DAN520 model is a 120-Volt model with accessories included for mounting on a drum/barrel. The accessory package includes a 3/4 in. automatic nozzle, 3/4 in. x 5 in. suction hose, 3/4 in. x 20 in. discharge hose, 20 in. power cord, drum/barrel mounting bracket, nozzle boot and assembly hardware.
- Pump is pre-mounted to the bracket to speed up assembly
- Rugged multi-diaphragm technology with EPDM seals that are specifically designed for DEF (Diesel Exhaust Fluid)
- Internal pulsation dampener that will smooth flow at point of use so there is little to no splashing during dispensing
- Operates with a 30-minute on/off duty cycle and max operating pressure of 38 psi
| Manufacturer | Other Brands | |
|---|---|---|
| Specification | ||
Dimensions |
||
| Product Depth (in.) | ||
| 12 in | ||
| Product Height (in.) | ||
| 7 in | ||
| Product Width (in.) | ||
| 7 in | ||
Details |
||
| Amperage (amps) | ||
| 2.4 | ||
| Cord Length (ft.) | ||
| 6 | ||
| Discharge Flow @ 0 ft. (gallons/hour) | ||
| 600 | ||
| Discharge Flow @ 0 ft. (gallons/min) | ||
| 10 | ||
| Discharge Flow @ 10 ft. (gallons/hour) | ||
| 480 | ||
| Discharge Flow @ 10 ft. (gallons/min) | ||
| 8 | ||
| Features | ||
| Corrosion Resistant,Self-Priming,Thermal Overload Protection | ||
| Head Pressure (ft.) | ||
| 63 | ||
| Housing Material | ||
| Thermoplastic | ||
| Included | ||
| Hardware,Mounting Bracket | ||
| Inlet Connection | ||
| Threaded female | ||
| Maximum Discharge Flow (gallons/hour) | ||
| 600 | ||
| Maximum Horsepower (hp) | ||
| 0.25 | ||
| Maximum Pressure (psi) | ||
| 38 | ||
| Maximum Working Temperature (F) | ||
| 140 | ||
| Minimum working temperature (F) | ||
| 12 | ||
| Outlet Connection | ||
| Threaded female | ||
| Power Type | ||
| Electric | ||
| Power Type Required | ||
| AC | ||
| Product Weight (lb.) | ||
| 28 lb | ||
| Pump Switch Type | ||
| Electronic | ||
| Returnable | ||
| 180-Day | ||
Warranty / Certifications |
||
| Certifications and Listings | ||
| Certified Listed | ||
| Manufacturer Warranty | ||
| 2 Years | ||
| Vertical Lift (ft.) | ||
| 6 | ||
| Voltage | ||
| 120v | ||
