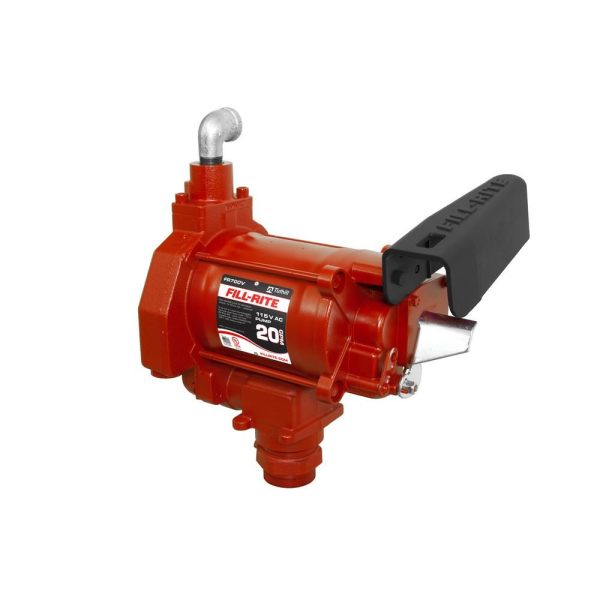

FILL RITE 115-V 1/3 HP 20 GPM Fuel Transfer Pump w/ No Accessories (Pump Only)
Shop Now Pay Later, It's Easy - Simply Lease to Own.
est. $33.00 /week*
- Details
- Additional Information
- Specifications
Description
Product Overview
The 700 series product line from FILL-RITE is a 115-Volt AC powered 20 GPM rotary vane fuel transfer pump. It is designed to transfer diesel, gasoline, kerosene, ethanol blends up to 15%, methanol blends up to 15%, and bio-diesel up to B20. The 700 and 701 models have a female NPT threaded 1-1/4 in. inlet and 3/4 in. outlet connection. Model FR700VN is a 2 in. bung mounted pump with no accessories (pump only).
- Durable cast iron pump housing built to withstand the wear and tear of rough operating environments
- 1/3 HP AC motor at 1,725 RPM provides up to 53 ft. of discharge head
- Built with iron rotors and carbon vanes to provide the pump with longer life and greater fuel compatibility
- Kit is available to convert 700 and 701 models from 3/4 in. outlet to 1 in. outlet
| Manufacturer | Other Brands | |
|---|---|---|
| Specification | ||
Dimensions |
||
| Product Depth (in.) | ||
| 8 in | ||
| Product Height (in.) | ||
| 15 in | ||
| Product Width (in.) | ||
| 16 in | ||
Details |
||
| Amperage (amps) | ||
| 5.5 A | ||
| Cord Length (ft.) | ||
| 1 | ||
| Discharge Flow @ 0 ft. (gallons/hour) | ||
| 1200 | ||
| Discharge Flow @ 0 ft. (gallons/min) | ||
| 20 | ||
| Discharge Flow @ 10 ft. (gallons/hour) | ||
| 1200 | ||
| Discharge Flow @ 10 ft. (gallons/min) | ||
| 20 | ||
| Features | ||
| Self-Priming,Thermal Overload Protection | ||
| Head Pressure (ft.) | ||
| 53 | ||
| Housing Material | ||
| Cast-Iron | ||
| Included | ||
| Hardware | ||
| Inlet Connection | ||
| Threaded female | ||
| Maximum Discharge Flow (gallons/hour) | ||
| 1200 | ||
| Maximum Horsepower (hp) | ||
| 0.33 | ||
| Maximum Pressure (psi) | ||
| 23 | ||
| Maximum Working Temperature (F) | ||
| 105 | ||
| Minimum working temperature (F) | ||
| -13 | ||
| Outlet Connection | ||
| Threaded female | ||
| Power Type | ||
| Electric | ||
| Power Type Required | ||
| AC | ||
| Product Weight (lb.) | ||
| 41 lb | ||
| Pump Switch Type | ||
| Electronic | ||
| Returnable | ||
| 180-Day | ||
Warranty / Certifications |
||
| Certifications and Listings | ||
| CE Certified,cUL Listed | ||
| Manufacturer Warranty | ||
| Limited Lifetime | ||
| Vertical Lift (ft.) | ||
| 53 | ||
| Voltage | ||
| 115v |
