FILL RITE 12-V 15 GPM 1/4 HP Fuel Transfer Pump (Filter w/ Swivel Package)
Your Lease Ownership Plan
est. $36.00 /week*
DELIVER TO YOUR DOOR OR IN-STORE PICKUP*
LEASE TO OWN WITH NO CREDIT NEEDED*
- Details
- Additional Information
- Q & A
- Specifications
Description
Product Overview

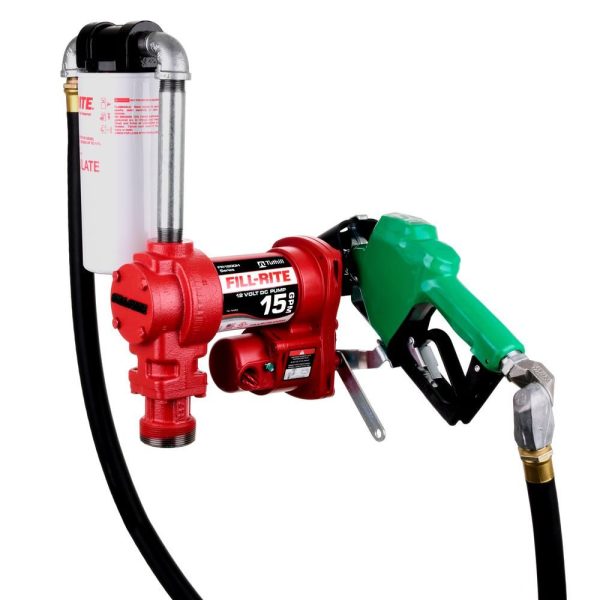

The FR1220HDSFQ is a 12-Volt 15 GPM fuel transfer pump that comes with a 3/4 in. x 18 ft. discharge hose, 3/4 in. unleaded auto nozzle (green cover), 10 micron particulate filter, filter head with hardware, 3/4 in. multi-plane swivel, 1 in. x 34 in. telescoping steel suction pipe, 3/4 in. elbow, 5 ft. 12-Gauge ground wire and a 18 ft. 12-Gauge 2-wire battery cable. It can be used to pump gasoline, diesel, kerosene, ethanol blends up to 15%, methanol blends up to 15% and bio-diesel up to B20. With a removable junction box, installation of the product has never been easier.
- Durable cast iron pump housing built to withstand the wear and tear of rough operating environments
- Thermal overload protection prevents motor from overheating during abnormal usage
- Rugged switch lever is designed to endure heavy abuse
- Self-priming pump with a 1/4 HP motor at 2,600 RPM (30 minute on/off duty cycle)
- System comes with a 30 micron particulate filter (FILL-RITE PN F4030PM0)
| Manufacturer | Other Brands | |
|---|---|---|
| Specification | ||
Dimensions |
||
| Product Depth (in.) | ||
| 11 in | ||
| Product Height (in.) | ||
| 18 in | ||
| Product Width (in.) | ||
| 14 in | ||
Details |
||
| Amperage (amps) | ||
| 20 A | ||
| Cord Length (ft.) | ||
| 18 | ||
| Discharge Flow @ 0 ft. (gallons/hour) | ||
| 900 | ||
| Discharge Flow @ 0 ft. (gallons/min) | ||
| 15 | ||
| Discharge Flow @ 10 ft. (gallons/hour) | ||
| 900 | ||
| Discharge Flow @ 10 ft. (gallons/min) | ||
| 15 | ||
| Features | ||
| Self-Priming,Thermal Overload Protection | ||
| Head Pressure (ft.) | ||
| 37 | ||
| Housing Material | ||
| Cast-Iron | ||
| Included | ||
| Hardware,Mounting Bracket | ||
| Inlet Connection | ||
| Threaded female | ||
| Maximum Discharge Flow (gallons/hour) | ||
| 900 | ||
| Maximum Horsepower (hp) | ||
| 0.25 | ||
| Maximum Pressure (psi) | ||
| 16 | ||
| Maximum Working Temperature (F) | ||
| 105 | ||
| Minimum working temperature (F) | ||
| -13 | ||
| Outlet Connection | ||
| Threaded female | ||
| Power Type | ||
| Electric | ||
| Power Type Required | ||
| DC | ||
| Product Weight (lb.) | ||
| 44 lb | ||
| Pump Switch Type | ||
| Electronic | ||
| Returnable | ||
| 180-Day | ||
Warranty / Certifications |
||
| Certifications and Listings | ||
| UL Listed,cUL Listed | ||
| Manufacturer Warranty | ||
| Limited Lifetime | ||
| Vertical Lift (ft.) | ||
| 37 | ||
| Voltage | ||
| 12v |
