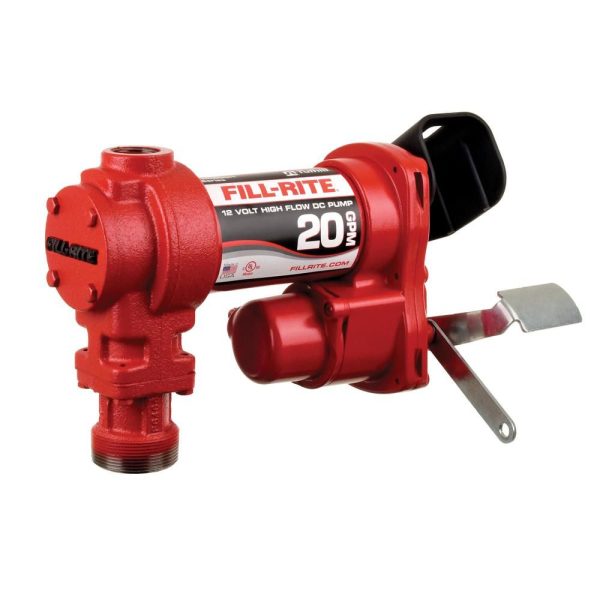

FILL RITE 12-V 20 GPM 1/4 HP Fuel Transfer Pump (Pump Only)
Shop Now Pay Later, It's Easy - Simply Lease to Own.
est. $23.00 /week*
- Details
- Additional Information
- Specifications
Description
Product Overview
The FR4204H is a 12-Volt 20 GPM fuel transfer pump that comes as a pump only model and comes with a 1 in. elbow, 5 ft. 12-Gauge ground wire, and a 18 ft. 12-Gauge 2-wire battery cable (1 in. outlet). It can be used to pump gasoline, diesel, kerosene, ethanol blends up to 15%, methanol blends up to 15%, and bio-diesel up to B20. The previous FR4204G model has been updated to the FR4204H model. With a removable junction box, the product is now easier to install. The performance specifications of the product did not change.
- Durable cast iron pump housing built to withstand the wear and tear of rough operating environments
- Thermal overload protection prevents motor from overheating during abnormal usage
- Rugged switch lever is designed to endure heavy abuse
- Self-priming pump with a 1/4 HP motor at 2,600 RPM (30 minute on/off duty cycle)
| Manufacturer | Other Brands | |
|---|---|---|
| Specification | ||
Dimensions |
||
| Product Depth (in.) | ||
| 11 in | ||
| Product Height (in.) | ||
| 6 in | ||
| Product Width (in.) | ||
| 14 in | ||
Details |
||
| Amperage (amps) | ||
| 20 A | ||
| Cord Length (ft.) | ||
| 18 | ||
| Discharge Flow @ 0 ft. (gallons/hour) | ||
| 1200 | ||
| Discharge Flow @ 0 ft. (gallons/min) | ||
| 20 | ||
| Discharge Flow @ 10 ft. (gallons/hour) | ||
| 1200 | ||
| Discharge Flow @ 10 ft. (gallons/min) | ||
| 20 | ||
| Features | ||
| Self-Priming,Thermal Overload Protection | ||
| Head Pressure (ft.) | ||
| 37 | ||
| Housing Material | ||
| Cast-Iron | ||
| Included | ||
| No Additional Items Included | ||
| Inlet Connection | ||
| Threaded female | ||
| Maximum Discharge Flow (gallons/hour) | ||
| 1200 | ||
| Maximum Horsepower (hp) | ||
| 0.25 | ||
| Maximum Pressure (psi) | ||
| 16 | ||
| Maximum Working Temperature (F) | ||
| 105 | ||
| Minimum working temperature (F) | ||
| -13 | ||
| Outlet Connection | ||
| Threaded female | ||
| Power Type | ||
| Electric | ||
| Power Type Required | ||
| DC | ||
| Product Weight (lb.) | ||
| 20 lb | ||
| Pump Switch Type | ||
| Electronic | ||
| Returnable | ||
| 180-Day | ||
Warranty / Certifications |
||
| Certifications and Listings | ||
| UL Listed,cUL Listed | ||
| Manufacturer Warranty | ||
| Limited Lifetime | ||
| Vertical Lift (ft.) | ||
| 37 | ||
| Voltage | ||
| 12v |
