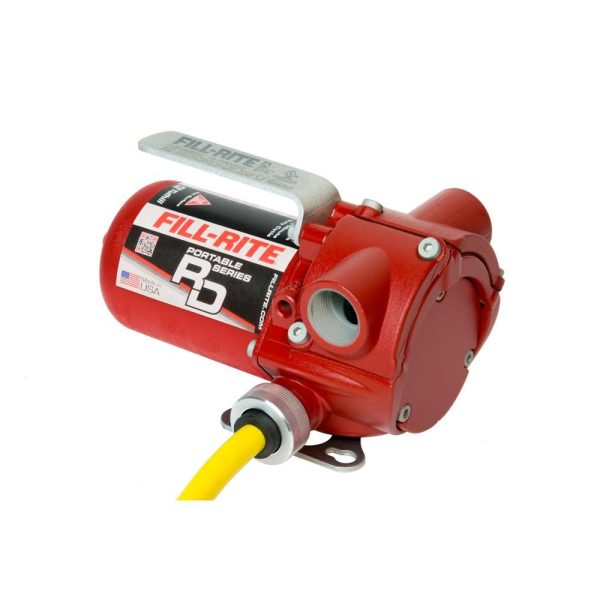

FILL RITE 12-V 8 GPM 1/6 HP Portable Fuel Transfer Pump (Pump Only)
Your Lease Ownership Plan
est. $15.00 /week*
DELIVER TO YOUR DOOR OR IN-STORE PICKUP*
LEASE TO OWN WITH NO CREDIT NEEDED*
- Details
- Additional Information
- Q & A
- Specifications
Description
Product Overview
The RD Series Portable Fuel Transfer Pumps are reinventing the way people fuel their equipment. With the RD Series you get a flow rate of up to 8 GPM (RD8) or 12 GPM (RD12), the flexibility of mounting it or holding it by hand and quick connect DC power, you have the ability to fuel just about anything, anytime, anywhere. It’s the perfect pump to carry in your truck. Be ready at a moment’s notice to fuel your tractor, backhoe, boat, generator or virtually any other petroleum powered vehicle or equipment. The RD is also ideal for bunded tank applications, where it can be foot or bung mounted. Drain or fill fuel tanks safely in service centers with no spills and no worries. Each pump is compatible with diesel, gasoline, light oils or kerosene.
- Durable cast aluminum pump housing built to withstand the wear and tear of rough operating environments
- Capable of providing a suction lift of up to 6.5 ft. (diesel)
- Quiet operating pump with maximum 65 dBA
- 14 Amp draw (maximum) with a 30-minute duty cycle
- CE, ATEX, UL and INMETRO certifications
- Self-priming pump that can be used to transfer gasoline, diesel, kerosene, ethanol blends to 15%, methanol blends to 15%, bio-diesel to B20
- Configurable flanges where you position the inlet and outlet hoses to fit your needs, then remove 2 bolts, rotate the flange and you’re done
- Quick connect power cord that provides a simple, quick and safe connection to your power source, no electrician required
- 3/4 in. inlet and outlet with female NPT threads
| Manufacturer | Other Brands | |
|---|---|---|
| Specification | ||
Dimensions |
||
| Product Depth (in.) | ||
| 5 in | ||
| Product Height (in.) | ||
| 5 in | ||
| Product Width (in.) | ||
| 8 in | ||
Details |
||
| Amperage (amps) | ||
| 14 A | ||
| Cord Length (ft.) | ||
| 10 | ||
| Discharge Flow @ 0 ft. (gallons/hour) | ||
| 480 | ||
| Discharge Flow @ 0 ft. (gallons/min) | ||
| 8 | ||
| Discharge Flow @ 10 ft. (gallons/hour) | ||
| 480 | ||
| Discharge Flow @ 10 ft. (gallons/min) | ||
| 8 | ||
| Features | ||
| Corrosion Resistant,Portable,Self-Priming,Thermal Overload Protection | ||
| Head Pressure (ft.) | ||
| 37 | ||
| Housing Material | ||
| Aluminum | ||
| Included | ||
| Hardware | ||
| Inlet Connection | ||
| Threaded female | ||
| Maximum Discharge Flow (gallons/hour) | ||
| 480 | ||
| Maximum Horsepower (hp) | ||
| 0.167 | ||
| Maximum Pressure (psi) | ||
| 16 | ||
| Maximum Working Temperature (F) | ||
| 105 | ||
| Minimum working temperature (F) | ||
| -13 | ||
| Outlet Connection | ||
| Threaded female | ||
| Power Type | ||
| Electric | ||
| Power Type Required | ||
| DC | ||
| Product Weight (lb.) | ||
| 8.6 lb | ||
| Pump Switch Type | ||
| Electronic | ||
| Returnable | ||
| 180-Day | ||
Warranty / Certifications |
||
| Certifications and Listings | ||
| CE Certified,UL Listed | ||
| Manufacturer Warranty | ||
| 2 Years | ||
| Vertical Lift (ft.) | ||
| 37 | ||
| Voltage | ||
| 12v |
