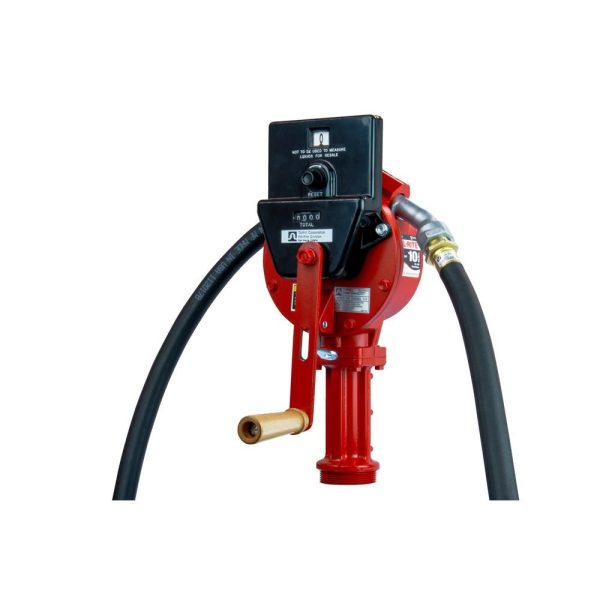

FILL RITE Rotary Fuel Transfer Hand Pump w/ Std Accessories and Counter
Your Lease Ownership Plan
est. $16.00 /week*
DELIVER TO YOUR DOOR OR IN-STORE PICKUP*
LEASE TO OWN WITH NO CREDIT NEEDED*
- Details
- Additional Information
- Q & A
- Specifications
Description
Product Overview
The FR112C model is a hand operated fuel transfer pump (rotary vane) designed to handle the transferring of diesel, gasoline, kerosene, ethanol blends up to 15%, methanol blends up to 15% and bio-diesel up to B20. It comes with the standard accessories configuration which includes a 3/4 in. x 8 ft. discharge hose, 3/4 in. spout end and a 1 in. x 34 in. telescoping steel suction pipe plus a gallon counter. With the rotary vane design, the operator should see less resistance when pumping compared to other hand pump technologies.
- Flowrate of 10 Gal. per 100 revolutions
- Pump can be padlocked for security
- 1 in. inlet and 3/4 in. outlet
| Manufacturer | Other Brands | |
|---|---|---|
| Specification | ||
Dimensions |
||
| Product Depth (in.) | ||
| 9 in | ||
| Product Height (in.) | ||
| 20 in | ||
| Product Width (in.) | ||
| 9 in | ||
Details |
||
| Amperage (amps) | ||
| 0 | ||
| Discharge Flow @ 0 ft. (gallons/hour) | ||
| 100 | ||
| Discharge Flow @ 0 ft. (gallons/min) | ||
| 2 | ||
| Discharge Flow @ 10 ft. (gallons/hour) | ||
| 100 | ||
| Discharge Flow @ 10 ft. (gallons/min) | ||
| 2 | ||
| Features | ||
| No Additional Features | ||
| Housing Material | ||
| Aluminum | ||
| Included | ||
| Hardware | ||
| Inlet Connection | ||
| Threaded female | ||
| Maximum Horsepower (hp) | ||
| 0 | ||
| Maximum Pressure (psi) | ||
| 0 | ||
| Maximum Working Temperature (F) | ||
| 105 | ||
| Minimum working temperature (F) | ||
| -13 | ||
| Power Type | ||
| Mechanical | ||
| Product Weight (lb.) | ||
| 17 lb | ||
| Returnable | ||
| 180-Day | ||
| Vertical Lift (ft.) | ||
| 15 | ||
Warranty / Certifications |
||
| Certifications and Listings | ||
| CE Certified,UL Listed | ||
| Manufacturer Warranty | ||
| 2 Years |
