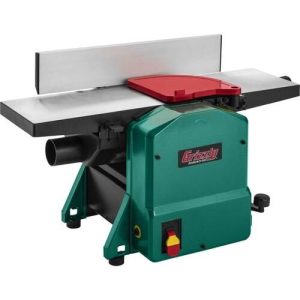

Grizzly Industrial 8 in. Combo Planer/Jointer with Helical Cutterhead

About This Product

Get your next woodworking project done with this 8-in. two-in-one planer jointer. The compact benchtop design fits into small spaces and makes it easy to use for cleaning up old or rough lumber. An 1-1/2 HP motor delivers superior power. The helical cutterhead features 18 inserts diagonally arranged in two rows for smooth shearing cuts, minimized tearout, a smoother finish and operating with less noise compared to straight knife blades. You can rotate it up to three times to expose a new sharp edge. For convenient dust collecting, the dust collection shroud easily relocates depending on which operation you are using, and the 2-in. dust port allows easy connection to a dust collector. The planer and jointer tables lock firmly in place when you’re using it to ensure accurate, repeatable cuts. The quick-release fence offer stops at 0-degrees and 45 degrees 2-1/2 in. Die-cast aluminum infeed and outfeed tables make it sturdy.

About This Product

Motor: 1-1/2 HP, 120V, single-phase, 15A

Maximum cut width: 8 in.

Maximum cut depth: 3/64 in.

Minimum workpiece length: 6 in.

Minimum thickness: 1/4 in.

Cutterhead type: 2-in. helical with 18 inserts

Insert size and type: 15 mm x 15 mm x 2.5 mm indexable carbide inserts

Cutterhead speed: 8500 RPM

Cuts per minute: 17,000

Planing feed rate: 22 FPM

Bevel jointing: 0 to 45 degrees

Fence size: 21 in. L x 4 in. H

Planer table size: 13-3/4 in. L x 8 in. W

Jointer table size: 29-1/4 in. L x 8-1/4 in. W

Footprint: 15-1/2 in. x 10-1/2 in.

Overall dimensions: 31 in. W x 17-1/2 in. D x 18-1/2 in. H

Approximate shipping weight: 57 lbs.
