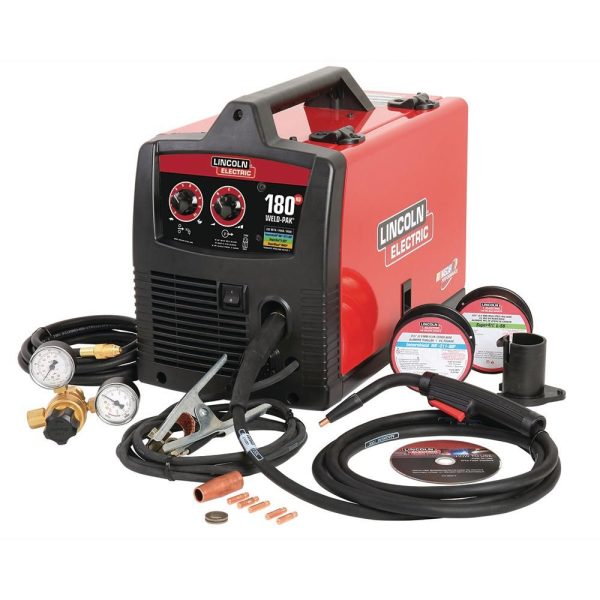

Lincoln Electric 180 Amp Weld-Pak 180 HD MIG Wire Feed Welder w/ Magnum 100L Gun, Gas Regulator, MIG and Flux-Cored Wire, 230V
Your Lease Ownership Plan
est. $46.00 /week*
DELIVER TO YOUR DOOR OR IN-STORE PICKUP*
LEASE TO OWN WITH NO CREDIT NEEDED*
- Details
- Additional Information
- Q & A
- Specifications
Description
Get it done with the Weld-Pak 180HD for farm, light fabrication, auto or home projects. If you have access to industrial 208/230-Volt input power, you can weld on thicker material – up to 3/16 in. with MIG welding and 1/2 in. with gas-less flux-cored welding. Simple 2 knob tapped control makes it easy to tackle thin steel, stainless or aluminum sheet metal with MIG or thicker steel with flux-cored welding. Compare the precise drive, rugged construction and full list of standard accessories. Lincoln Weld-Pak is an excellent choice
- Wide 30-180 Amp welding output range – use 0.025 in. wire on the thinnest sheet metal up to 0.045 in. flux-cored wire on thick plate
- MIG weld 24-Gauge up to 3/16 in. sheet metal in a single pass; weld up to 1/2 in. steel using self-shielded Lincoln inner shield wire (FCAW-S)
- Spool gun ready add the optional magnum 100SG spool gun for reliable operation at the high wire feed speeds aluminum welding demands; no expensive outboard modules required
- 3-year Lincoln warranty/90 days on gun and cable assembly
- Click here for more information on Electronic Recycling Programs
| Manufacturer | Lincoln | |
|---|---|---|
| Specification | ||
| Product Depth (in.) | ||
| 20 | ||
| Product Height (in.) | ||
| 16 | ||
| Product Width (in.) | ||
| 15 | ||
Details |
||
| Duty Cycle (%) | ||
| 30 | ||
| Engine Power | ||
| Electric (DC) | ||
| Included | ||
| Kit | ||
| Input Power (Volts) | ||
| 230 | ||
| Material Application Thickness (in.) | ||
| 0.5 | ||
| Maximum Wire Speed IPM | ||
| 500 | ||
| Maximum amperage output (amps) | ||
| 180 | ||
| Minimum amperage output (amps) | ||
| 30 | ||
| Rated Output (Volts) | ||
| 20 | ||
| Returnable | ||
| 30-Day | ||
| Tools Product Type | ||
| Power Tool | ||
| Welder Type | ||
| MIG,Wire-Feed | ||
Warranty / Certifications |
||
| Manufacturer Warranty | ||
| 3 Year Parts and Labor | ||
| Customer Rating | 5.0 | |
| Customer Rating | 4.7 |
