NooElec ADS-B Discovery 5dBi (High Gain) Antenna Bundle – 1090MHz & 978MHz

NooElec ADS-B Discovery 5dBi (High Gain) Antenna Bundle – 1090MHz & 97 Electronics

Description:

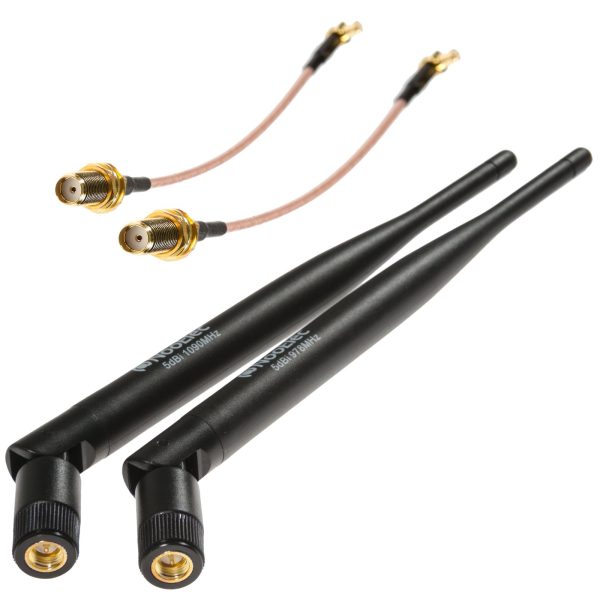

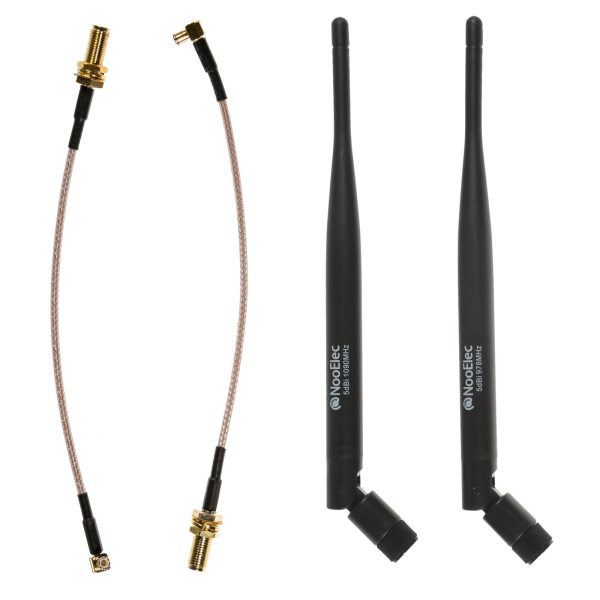

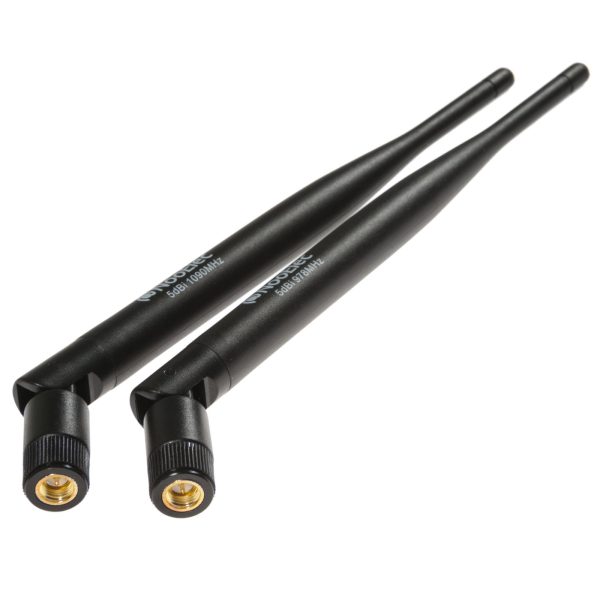

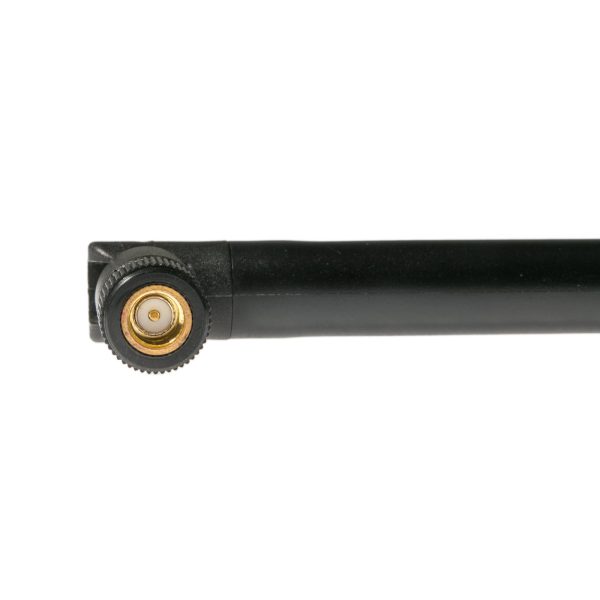

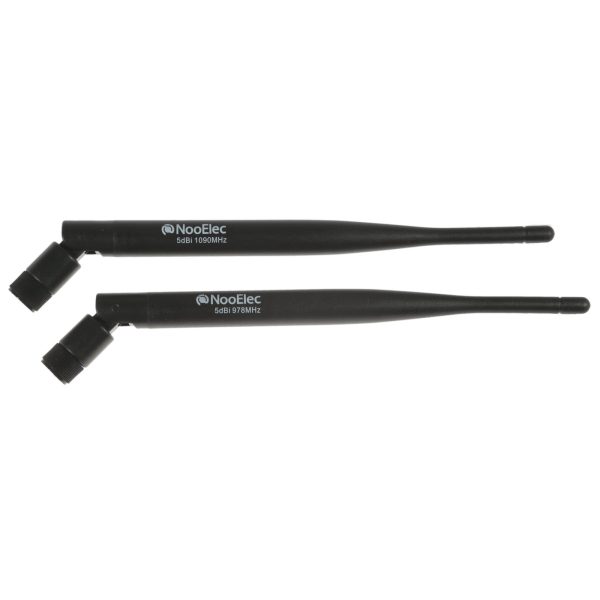

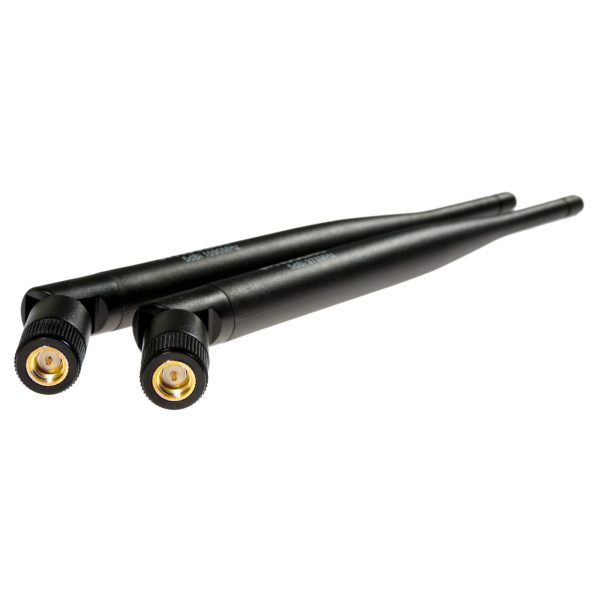

A pair of 5dBi, medium-sized, lightweight antennas with 978MHz and 1090MHz center frequencies, respectively, designed for portable ADS-B applications. Also included are a pair of 15cm (6″) male MCX to female SMA pigtail cables, made from RG316 cable for low loss. As such, these antennas can be used with MCX-input or SMA-input devices without further purchase. Each antenna is only 20g and 19cm (7.5″) long, 5dBi, with a VSWR of 1.5:1 or better at their respective center frequencies. A handy flexible antenna elbow facilitates a wide range of mounting options.

Features:

• Kit contains a 1090MHz SMA antenna, a 978MHz SMA antenna, and 2 male MCX to female SMA pigtail cables
• Perfect for embedded, portable or ground ADS-B applications where weight, size and range are all concerns.
• Antennas have foldable hinges for a multitude of mounting options
• Compatible with any SDR with SMA or MCX input connector
• Pigtail cables are made from quality RG316 and kept to 6″ in length to minimize loss
