Summary

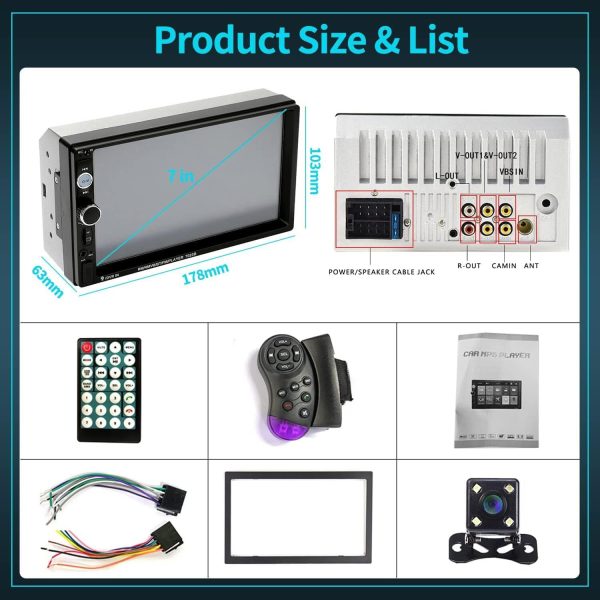

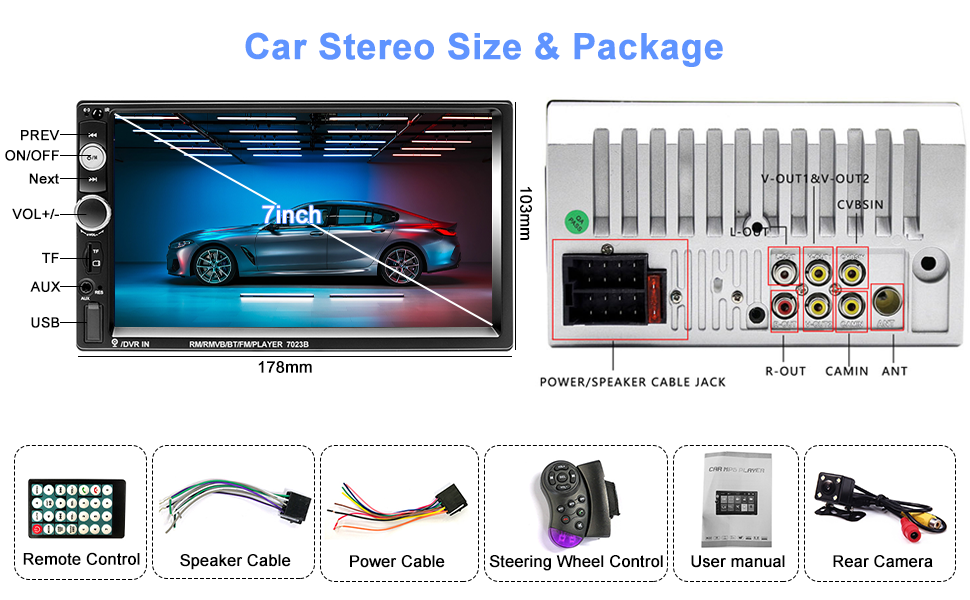

• 7 inch Multimedia Car Player: This double din car stereo newly designed with HD 7” 2.5D tempered glass touchscreen, Support USB/FM/SD/MMC MP3, car FM radio preset 18 stations ( frequency: 87.5-108 MHz ),head unit support breakpoints and ID3 Play, 4-channel high power output ( 4 loud speaker ), car stereo receiver is easy to install,Size:178(W) x 100(H)mm/7.01 x 3.94inch,need to check whether the original installation slot of your car matches 7.01 (L) x 3.94 (H) inches.

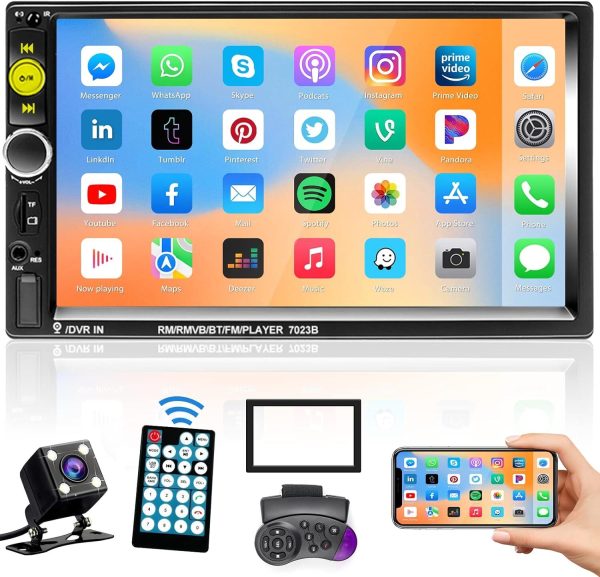

• Bluetooth & Mirror Link Function: Built-in Bluetooth 2.0 on the head unit, it supports hands free calling, Bluetooth music player and auto loading phone books. This car mp5 player can synchronize mobile phone screen in the car via connecting them with USB cable ( only supports for Android phone ). This unit does not support WIFI, If you need GPS navigation, you can do it by using Mirror Link.

• Built-in Car DVR System: Double din car radio will grasp the road condition accurately after connecting with a USB camera. The records will be saved in the media card automatically and can be played on this unit directly, indash supports remote control also steering wheel remote control, whatever you choose, it’s more convenience to using.

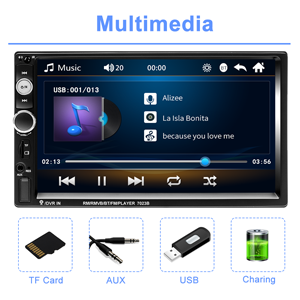

• Multiform Playback: Support U disk to play, you only need to insert the U disk into the machine’s interface for music playback support for external pull AUX (plug) input audio. Support large memory TF card, you can download the music or movies, play on this unit. A Variety of EQ sound effects scene selection.

• Rear View Camera Input: The car is connected to the reverse gear to automatically switch, backup camera is included in package. Steering wheel control supported with the car stereo. Support driving recorder: You can choose a recorder, and the car has playback, the evidence can be retained.

Product Description

Display:	7 inch Bluetooth Car Touch Screen Monitor with MP5 Player
Power Supply:	12V Machine(11 – 16V)
Bluetooth Specification:	V2.0, handsfree call, phonebook download
The Remote Control:	The remote control is inclued the battery is not included (battery: CR2025 3V)

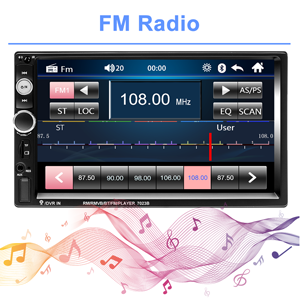

FM Stereo Radio:	Preset 18 stations ( frequency: 87.5-108 MHz )

Multiple EQ Scene Selection:	Jazz, rock, pop, classical, etc. Electronic control volume treble, bass, balance and fader
Output:	L / R RCA audio output jacks、4-channel high power output ( 4 loud speaker )
Support Modes:	BT / APE / WAV / WMA / MP3 / FM
Support Audio:	MP3 / WMA / APE / FLAC / WAV etc.

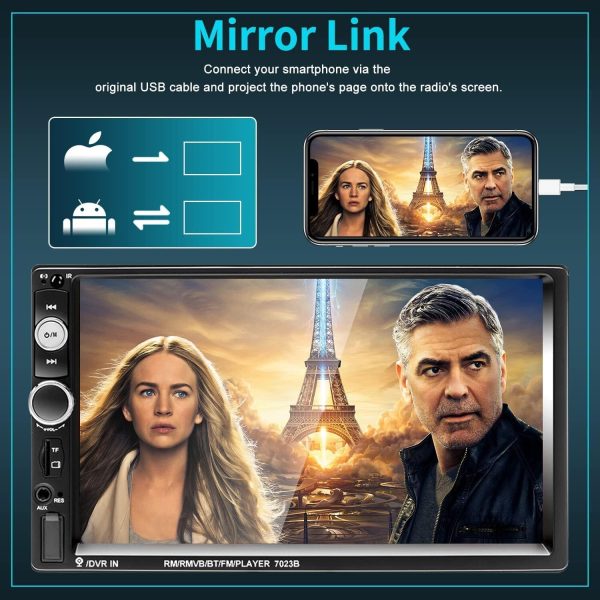

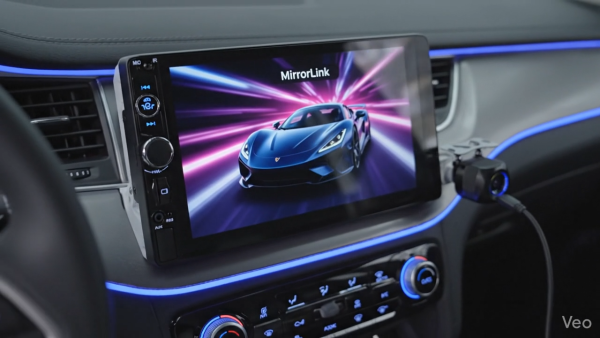

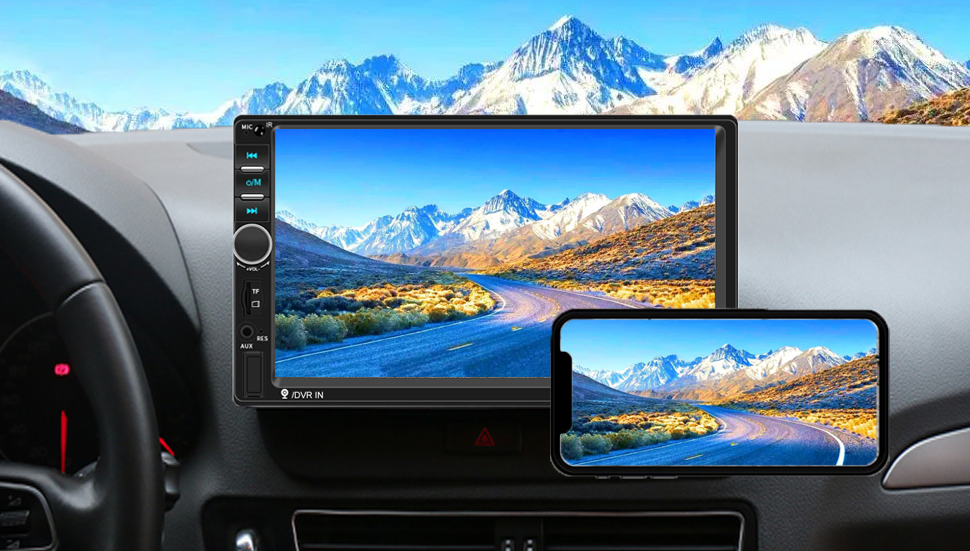

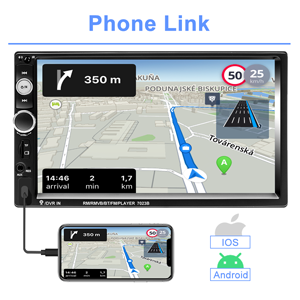

Mirror Link for Android phones (4.0-7.0)

• Especially convenient when you use GPS navigation on your mobile phone. You can see the map on the car radio.

How to use:

• Connect your phone to USB port of car stereo with original USB line.
• Android Phones: Find your phone developer options and open “ USB debugging”. You could realize two-way control between your phone and car stereo.

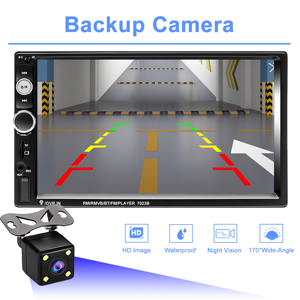

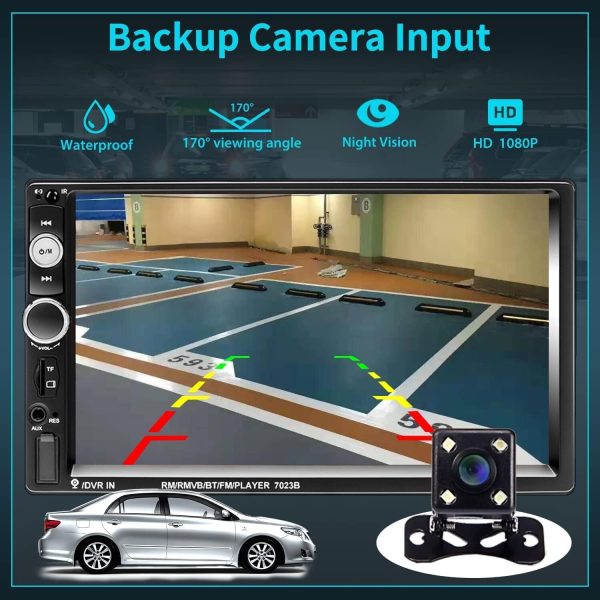

Reversing Camera Input Function

• The waterproof night vision camera and video cable is included in the package.
• After proper connection, the car radio will automatically display the rearview image when you pull in reverse, providing parking assistance.

5 Play Modes

1. FM radio from fm 87.5-107.9MHz
2. SD card
3. USB device ports (spport max 32G)
4. AUX input
5. Bluetooth For hands free

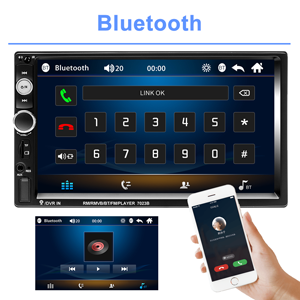

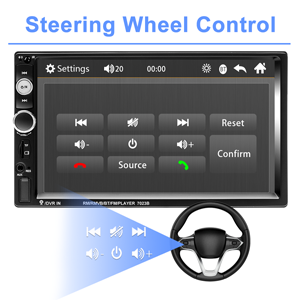

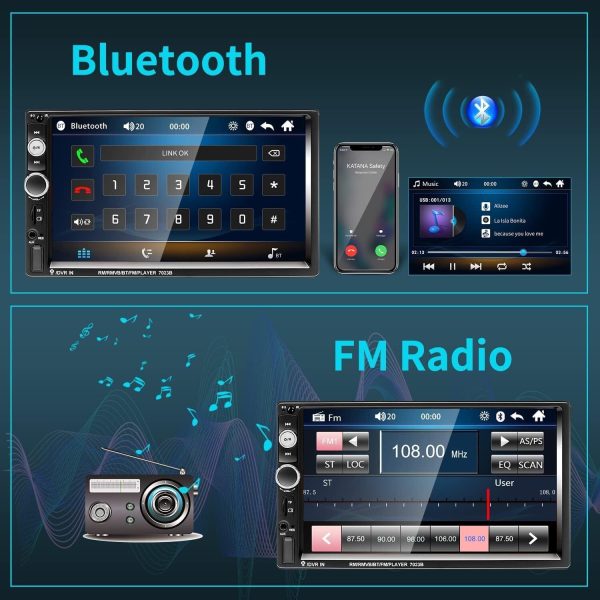

Bluetooth 2.0 Built-in Microphone Support hands-free call Support auto loading phonebooks Bluetooth music play	Digital Fm Radio Radio Frequency: 87.5-108MHz With 18 preset stations It can search channels in full-automatic ways, semiautomatic way and acurate adjustment way.	Car Original Steering Wheel Remote Control Please come into “Setting” to programme button. This function doesn’t work if car needs a canbus.
Mirror Link For Android(4.0-10.0) & iOS(5s-X) You can synchronized the map to the on-board screen.	Three Play Mode USB Interface: USB2.0 TF Card: 4-32G be supported AUX-In: an audio input port for external MP3, mobile phones	Backup Camera Video Input The waterproof night vision camera and video cable are included in the package. After connection, when you are parking, the device will display the rear view image automatically.

Wires Diagram

1. There are three color of the power cables, red, black and yellow.

• Red wire connects to ACC (ignition switch)
• Yellow wire connects to 12V battery positive
• Black wire connects to 12V battery negative

Note: the yellow wire must connect to constant power source, to keep setting memory.

2. There are four groups of speaker cables, green, grey, white and purple.

• Each color is one group, and in which one cable connects to one speaker’s positive wire and and the other negative wire.
• It is recommended that the users hire a professional electrician to wire, install, and debug this product after receiving it.
