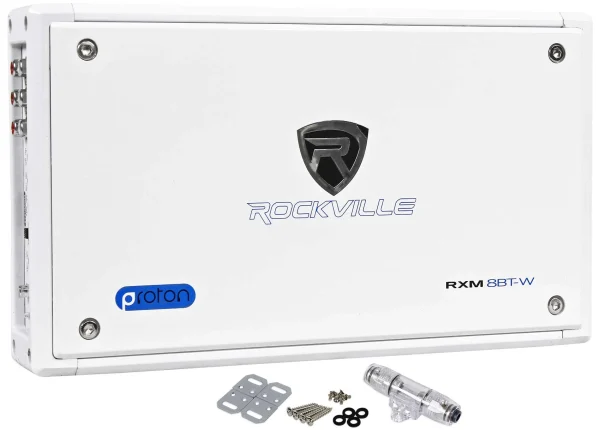

Rockville RXM8BTW 1500W Peak 750W RMS 8-Channel Marine Class D Amplifier with Bluetooth, Aluminum Casing

Description

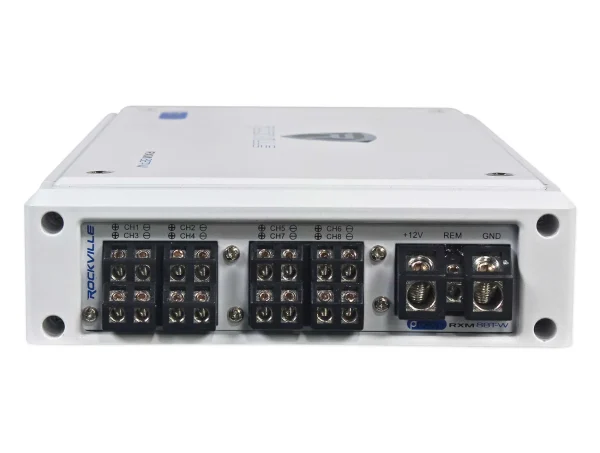

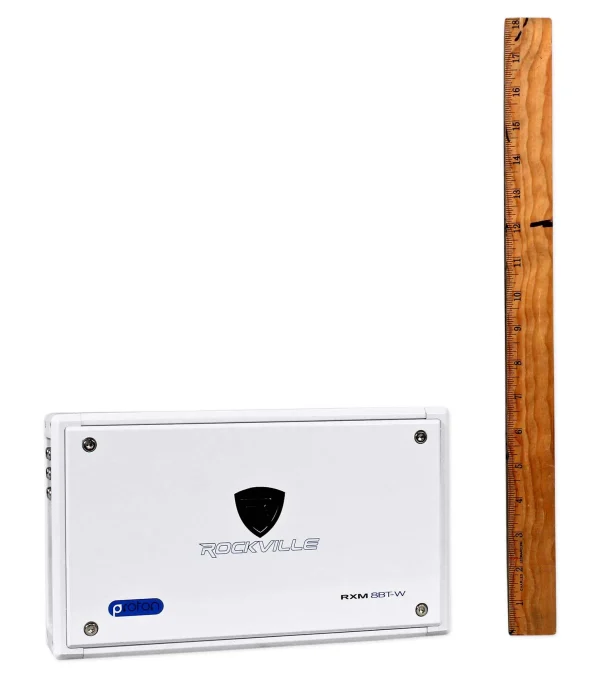

Power Output: RXM8BTW delivers 1500W peak and 750W Dyno-certified RMS power for marine audio systems RMS Ratings: 65W x 8 at 4 ohms, 95W x 8 at 2 ohms, and 190W x 4 bridged at 4 ohms for flexible setups Bluetooth Streaming: Auto-pairing Bluetooth plays audio from compatible phones and music devices onboard Marine Build: Conformal-coated boards resist salt spray and moisture with UV and salt water resistant finish Class D Design: TI Digital Class D audio topology supports compact amplifier design and high power output System Setup: Configures to 8, 6, or 4 channels with 4.2 system options and 4CH or 8CH input selector Crossover Control: Independent CH1-4 and CH5-8 controls with full range, low pass, and high pass modes Filter Range: Variable high-pass and low-pass filters adjust from 50Hz to 250Hz at 12dB per octave control Audio Specs: 10Hz to 40kHz response, over 100dB S/N ratio, less than 0.05 percent THD, 150mV to 6V input Hardware Specs: 80A fuse, stainless RCA inputs, stainless terminals, and compact 6.7 x 2 x 11.5 inch size

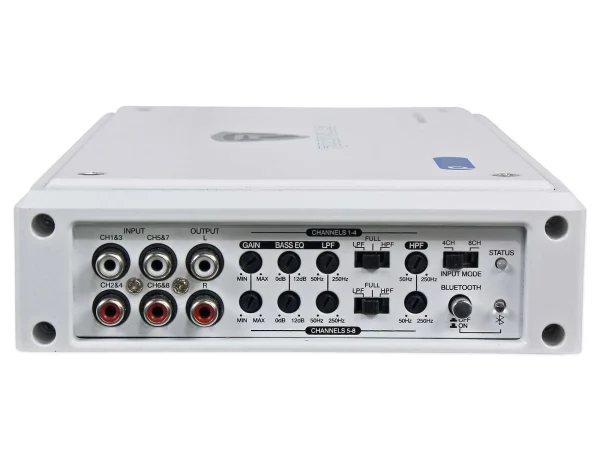

The Rockville RXM8BTW is a marine 8 channel digital Class D power amplifier with Bluetooth wireless integration for marine audio systems. It is rated at 750 watts Dyno Certified RMS power and 1500 watts peak system power, with 65 watts x 8 channels at 4 Ohms and 95 watts x 8 channels at 2 Ohms. This amplifier uses TI Digital Class D audio topology, a high speed MosFET power supply, studio grade bipolar output stage transistors, and micro size SMD component circuitry. The compact design supports high power output while keeping the amplifier layout suitable for marine installation spaces. The RXM8BTW includes Bluetooth wireless with auto pairing, RCA level inputs, RCA line output, and 4CH or 8CH input selector mode. It can be configured for 8, 6, or 4 channels, or a 4.2 system, and any 2 channels can be bridged for added system flexibility. For audio control, this marine amplifier includes independent crossover controls between CH1 to CH4 and CH5 to CH8, full range, low pass, and high pass configuration, variable high pass and low pass filters from 50Hz to 250Hz at 12dB per octave, and fully adjustable 0 to 12dB bass equalization at 45Hz. The amplifier features marine grade conformal coated boards to resist corrosion from salt spray and moisture, UV and salt water resistant paint, silk screen, and heat sink enclosure, stainless steel RCA level inputs, stainless steel bolt down molded terminals, 4 way system protection circuitry, an 80A fuse rating, frequency response of 10Hz to 40KHz, S/N ratio greater than 100dB, minimum THD below 0.05 percent, and dimensions of 6.7 inch W x 2 inch H x 11.5 inch L.
