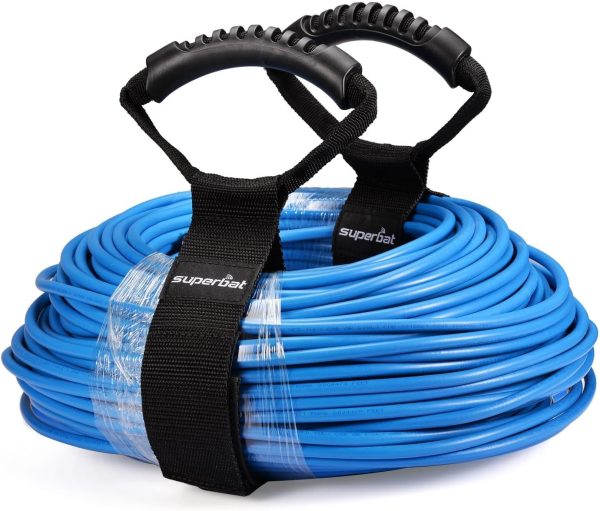

Superbat SDI Cable BNC Cable 3G/6G/12G (Belden 1694A)，100ft,Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable Precision Video Cable(1Pcs)
Your Lease Ownership Plan
est. $2 /week*
DELIVER TO YOUR DOOR OR IN-STORE PICKUP*
LEASE TO OWN WITH NO CREDIT NEEDED*
- Details
- Reviews (0)
- Q & A
SKU: local-store-product-290043
Product description
3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A )
Features and Specifications:
- Nominal impedance: 75 ohms-ideal – for audio and video
- Velocity of propagation: 82%
- Capacitance: 16.2 pF/ft.
- Nominal attenuation: 0.240 dB/100 ft. @ 1 MHz
- Overall diameter: 0.274″.
Serial Digital Data Rates
- Standard Definition SD-SDI (270 Mbps, ST 259)
- HD standard HD-SDI (1.483 Gbps, ST 292)
- 3G-SDI (2.97 Gbps, ST 424)
- 6G-SDI (5.94 Gbps, ST 2081)
- 12G-SDI (11.88 Gbps, ST 2082)

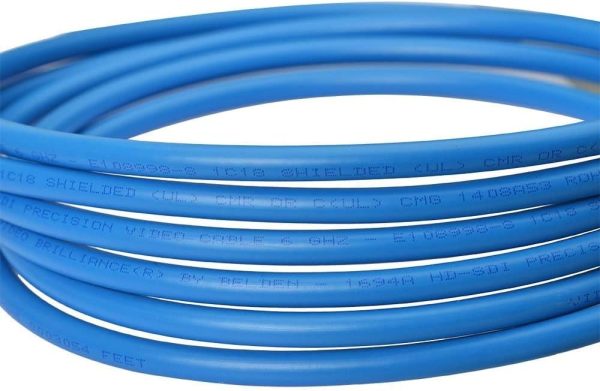

- Belden 1694A Low Loss Serial Digital Coaxial Cable is an RG6 coax designed to carry several video signals including analog, 4×3 digital (SD-SDI), high definition (HD-SDI) and even 3gig (1080p/50 or 1080p/60). The center conductor is made from true 75 Ohm 18AWG solid copper.
- This cable is 100% sweep tested and is ready to meet today’s requirements of 6 Gbps data transfer.can be used in professional broadcast applications.
- Center conductor: 0.40″ dia. bare copper
- Dielectric: 0.180″ dia. foamed PE
- Shield: 100% aluminum foil/polyester tape/aluminum foil and 95% coverage tinned copper – give them maximum protection from EMI and RFI,for excellent noise rejection
- PVC outer jacket – for durability and long-term protection.
- 50 Ohm BNC connectors are used with 50 Ohm cables. 75 Ohm connectors are used with 75 Ohm cables.
- 50-ohm cables/connectors work well with old analog video formats. If you are looking for high-quality video output, 50 Ohm will not give you a high-quality level.
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
|
| Customer Reviews |
4.8 out of 5 stars 681
|
4.6 out of 5 stars 238
|
4.4 out of 5 stars 70
|
4.7 out of 5 stars 20
|
4.2 out of 5 stars 104
|
4.7 out of 5 stars 471
|
|---|---|---|---|---|---|---|
| Price | $23.49$23.49 | $6.99$6.99 | $11.99$11.99 | $201.48$201.48 | $14.40$14.40 | $11.47$11.47 |
| Cable type | Belden 1694A | RG179 coax cable | Belden 1855A | Belden 1694A | 3C-2V A/V Cable | RG179 coax cable |
| Length | 1FT/2FT/3FT/10FT/15FT/30FT /50FT/75FT /100FT | 12inch / 20inch /3ft /6ft | 12inch /3FT/6.5FT | 50ft / 100ft / 150ft /200ft | 3 ft | 12inch /3ft |
| Support | SD-SDI/HD-SDI /3G-SDI/6G-SDI | Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable | SD-SDI/HD-SDI /3G-SDI/6G-SDI | for HD-SDI/3G-SDI/6G-SDI/ 4K/8K，SDI Video Cable | SD-SDI/HD-SDI /3G-SDI | Supports HD-SDI/3G-SDI/4K/8K，SDI Video Cable |
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
|
| Customer Reviews |
4.1 out of 5 stars 7
|
4.3 out of 5 stars 7
|
4.6 out of 5 stars 48
|
4.9 out of 5 stars 13
|
5.0 out of 5 stars 2
|
|---|---|---|---|---|---|
| Price | $59.99$59.99 | $219.00$219.00 | $99.79$99.79 | $17.47$17.47 | $379.00$379.00 |
| Cable type | Belden 1694A Multi-coloured | Belden 1694A blue | Belden 1694A Black | Belden 4855R | Belden 4694R |

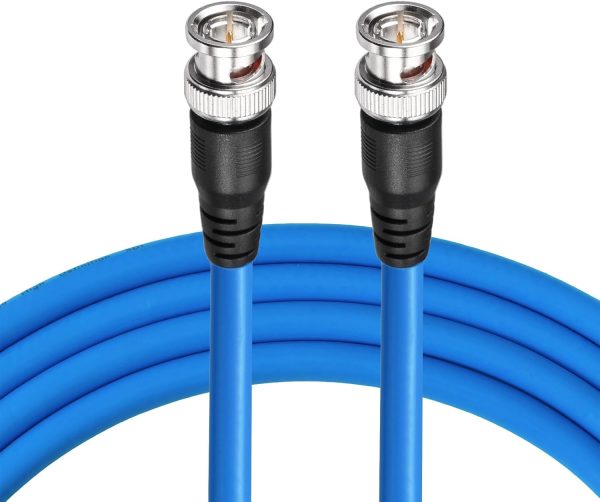

- 3G/6G/12G/HD-SDI Cable BNC to BNC Digital Video Cable(Belden 1694A;100 feet)

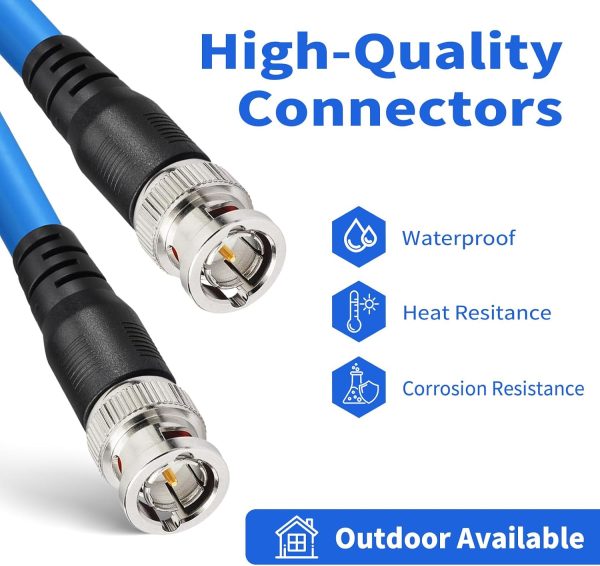

- Specifications: Both ends BNC male (plug) | Connector: Gold plated | Impedance: 75 Ohm | Cable Type: Belden 1694A;18 AWG|Standard Definition SD-SDI (270 Mbps, ST 259) HD standard HD-SDI (1.483 Gbps, ST 292)3G-SDI (2.97 Gbps, ST 424) 6G-SDI (5.94 Gbps, ST 2081) 12G-SDI (11.88 Gbps, ST 2082)

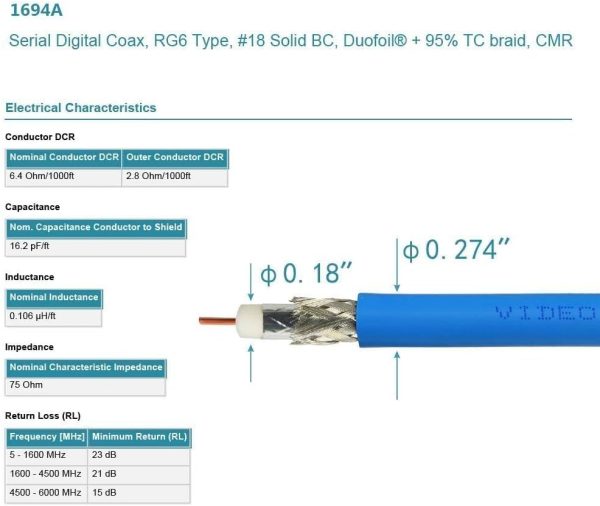

- BELDEN 1694 PRECISION SERIAL DIGITAL VIDEO COAXIAL CABLE: features exceptionally low attenuation and a 4.5 GHz Bandwidth in an RG6 type coax cable. Featuring RG-6/U type, 18 AWG solid .040″ bare copper conductor, Gas-injected FHDPE – Foam High-Density Polyethylene + tinned copper braid shield (95% coverage tinned copper braid combined with Duofoil foil/poly/foil 100% shield), PVC – Polyvinyl Chloride.
- Is suitable for HDTV and professional SDI applications: Supports HD-SDI, 3G-SDI, component, composite, MADI, WORD CLOCK, SYNC, etc.This shielded coaxial cable is compatible with a wide variety of popular software, including Blackmagic, AJA, Grass Valley, Evertz, Marshall, Cobalt Digital, Atomos, Postium, AVID, and Decimator. Our HD-SDI cable is great for use in HD-serial digital video transfer,HDTV upgrades, broadband facilities, and other applications with HD-SDI video.
- We are a professional sdi video cable manufacturer, please contact us for customised requirements. If you are unfortunate enough to receive a defective product, please contact us as we offer a one year warranty.
