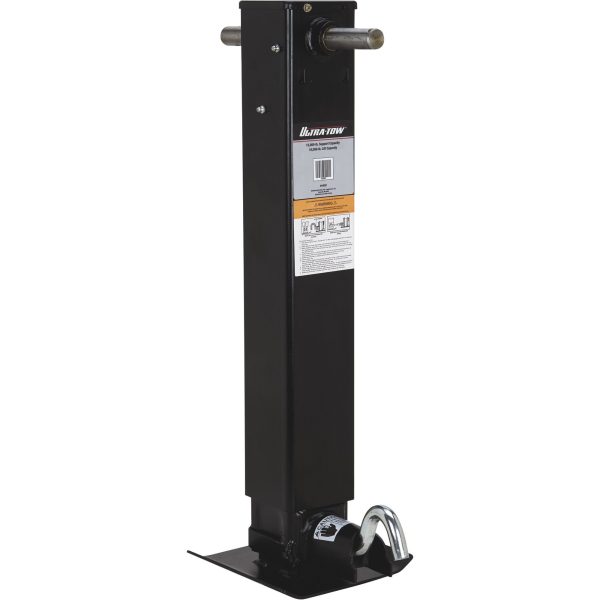

Ultra-Tow Spring Return Weld-On Sidewind Jack, 10,000-Lb. Lift Capacity

This Ultra-Tow® Spring Return Weld-On Sidewind Jack is a permanent weld-on mount sidewind trailer jack that features a 28 1/2in. retracted length and 54in. extended length with 10,000-lb. lift capacity. Thrust bearing design inside the jack allows for easier expanding and retracting Heavy welding on the crank shaft increases strength Large 3/4in. pull pin easily activates the spring return mechanism when dropping the leg Grease zerk fittings are built in for easy greasing of the jack Shaft end has an eased/bevel design to eliminate sharp edges 4in. square tube design Includes a footpad for stability Durable exterior-grade black powder-coat finish inside and out for corrosion resistance Black painted jack handle (Item# 44086) sold separately Measurements: A= Retracted (28 1/2in.), B= Extended (54in.) (see corresponding diagram)
